Hose repair record
F070368 Hydraulic Hose Specifications
Forestry Machine · John Deere · 1510G Forwarder
Repair dataOpen with a pass

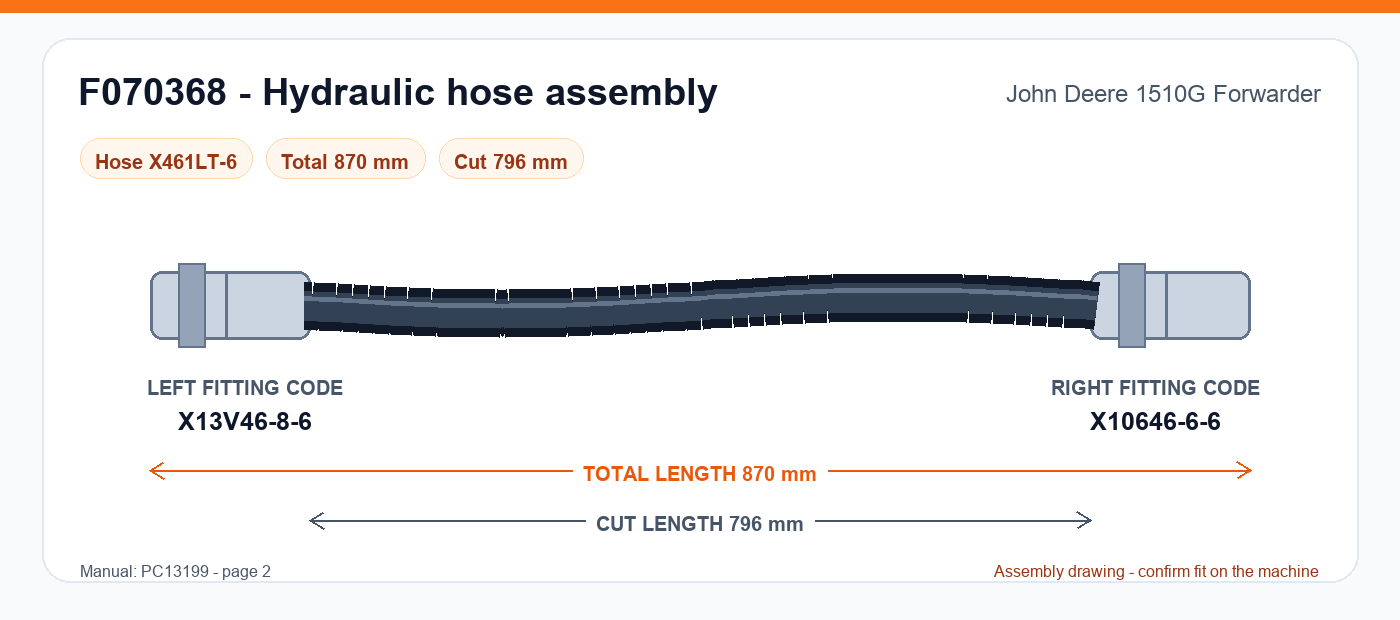

Hose drawing
Hose assembly drawing
Check the total length and both fitting codes before fabrication.
Repair measurements
These text values can be translated and copied. Confirm them against the machine before fabrication.
- Machine
- John Deere 1510G Forwarder
- Part number
- F070368
- Hose type
- X461LT-6
- Total length
- 870 mm
- Cut length
- 796 mm
- Left-end hydraulic fitting code
- X13V46-8-6Look up this code
- Right-end hydraulic fitting code
- X10646-6-6Look up this code
- Manual reference
- PC13199, page 2
Identify this hose
- Part number
- F070368
- Application
- 1510G Forwarder: Final Tier 4, Fixed Cabin
