Hose repair record

F688969 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1070G Wheeled Harvester

Repair dataOpen with a pass

Hose drawing

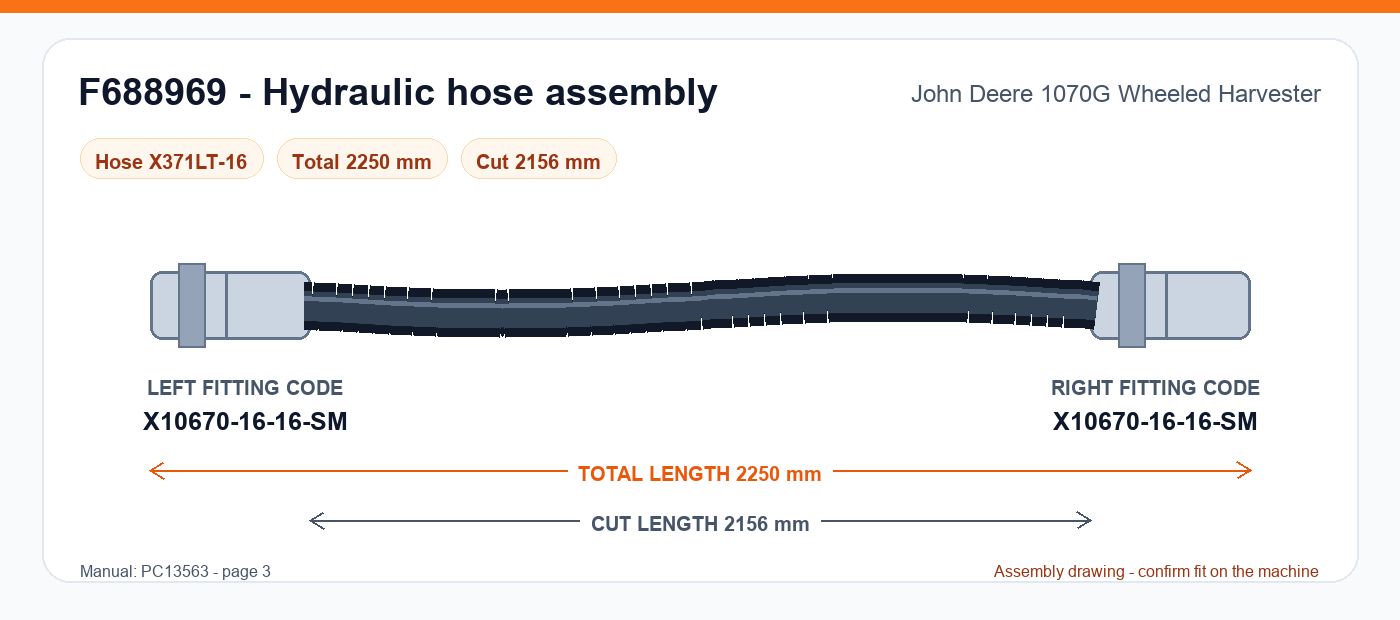

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1070G Wheeled Harvester
Part number: F688969
Hose type: X371LT-16
Total length: 2,250 mm
Cut length: 2,156 mm
Left-end hydraulic fitting code: X10670-16-16-SMJIC 37° female swivel straight · 1-5/16-12 UNF · 1 inch / DN25 hoseSee fitting details
Right-end hydraulic fitting code: X10670-16-16-SMJIC 37° female swivel straight · 1-5/16-12 UNF · 1 inch / DN25 hoseSee fitting details
Manual reference: PC13563, page 3

Identify this hose

Part number: F688969
Application: 1070G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II
