Individual hose record

KBJ3115 Hose Repair Specifications

Excavator · Case · CX220B · Boom Assembly

Finished length850 mm

Locate this hose

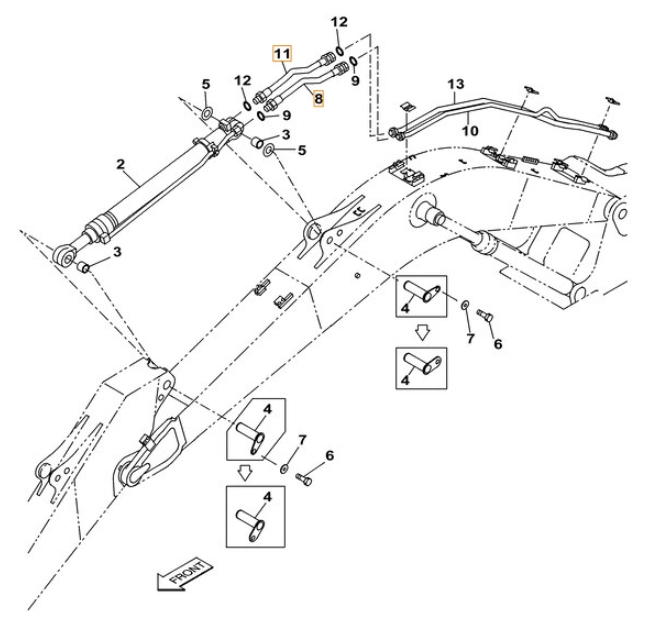

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number KBJ3115 before removing the hose.

Case CX220B installation diagram showing hydraulic hose KBJ3115 at Pipe No. 11 — **Case CX220B**Part KBJ3115 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: KBJ3115
Diagram pipe number: 11
Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右
Hose specification: DN25;4SP-16;32.5MPa
Finished length: 850 mm
Working pressure: 32.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

KRV19720

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 850 mm
Specification: DN19;4SP-12;35MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹(美制内螺纹)平面密封

View full repair specifications
