Individual hose record

4I-1410 Hose Repair Specifications

Excavator · Caterpillar · CAT®312B · Control Lever

Finished length1,590 mm

Locate this hose

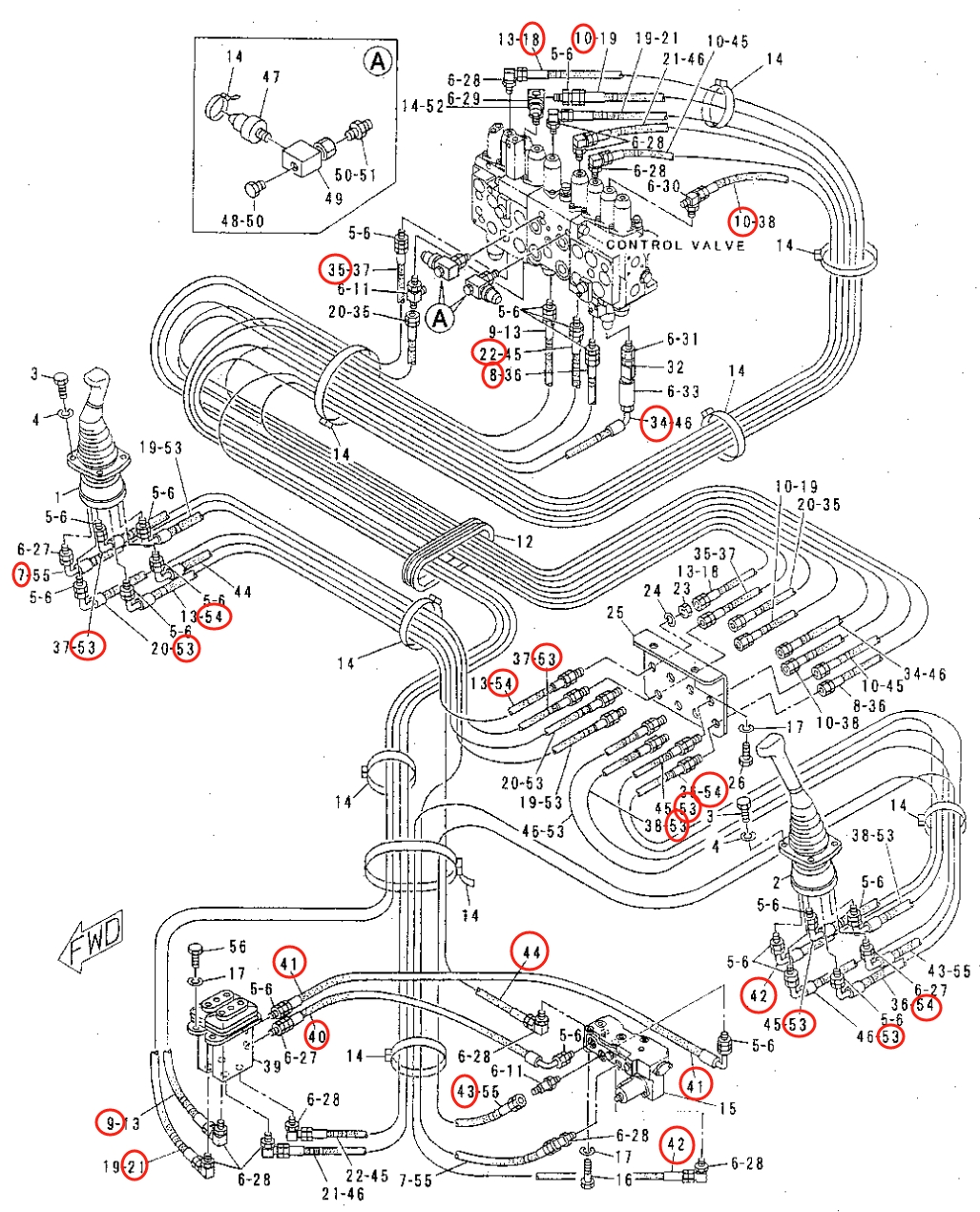

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4I-1410 before removing the hose.

Caterpillar CAT®312B installation diagram showing hydraulic hose 4I-1410 at Pipe No. 8 — Caterpillar CAT®312BPart 4I-1410 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4I-1410
Diagram pipe number: 8
Installation route: 中转接头~分配阀下
Hose specification: DN10;-6;10.3Mpa
Finished length: 1,590 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
