Individual hose record

104-9091 Hose Repair Specifications

Excavator · Caterpillar · CAT®315B FM L · Supply and Return Valve

Finished length1,650 mm

Locate this hose

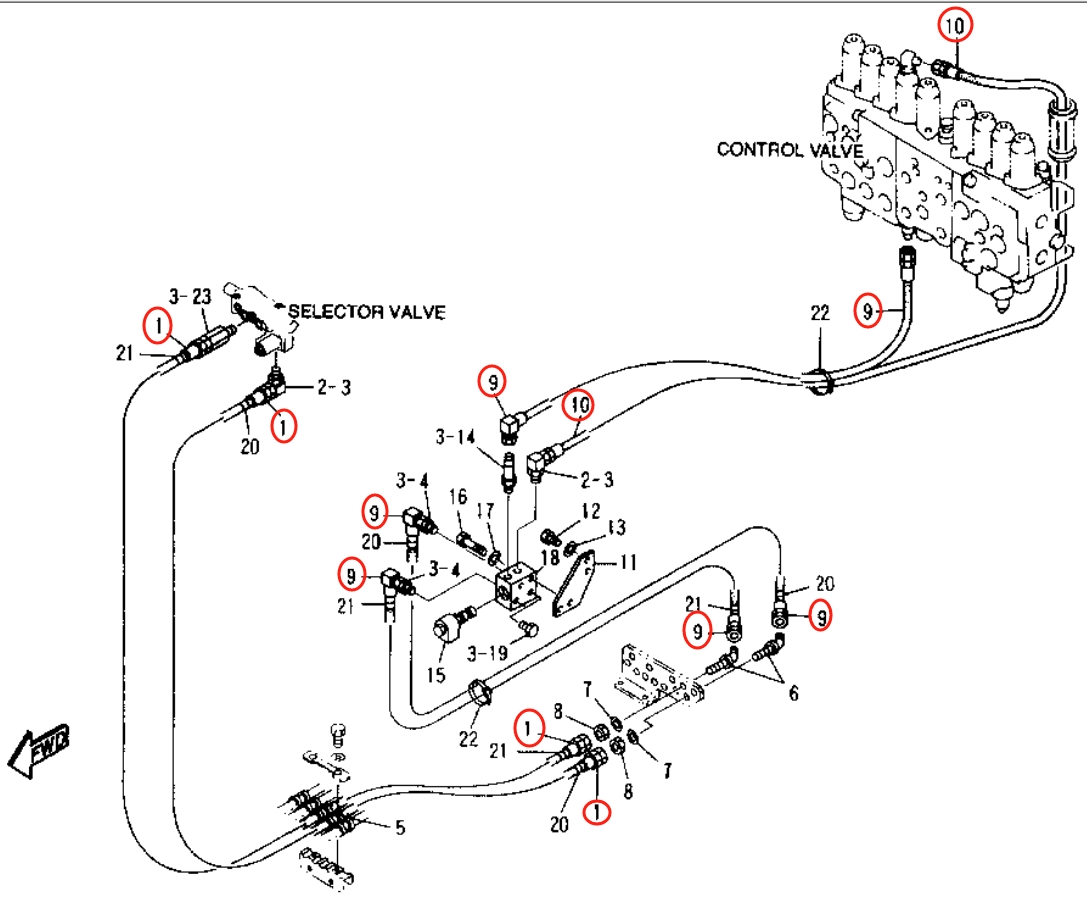

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 104-9091 before removing the hose.

Caterpillar CAT®315B FM L installation diagram showing hydraulic hose 104-9091 at Pipe No. 1 — Caterpillar CAT®315B FM LPart 104-9091 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 104-9091
Diagram pipe number: 1
Installation route: 进回油阀~后中转接头
Hose specification: DN10;-6;10.3Mpa
Finished length: 1,650 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 37

4I-1410

Installation route: 进回油阀~后中转接头

Length: 1,590 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
