Individual hose record

7Y-4193 Hose Repair Specifications

Excavator · Caterpillar · CAT®315C · Solenoid Valve

Finished length2,500 mm

Locate this hose

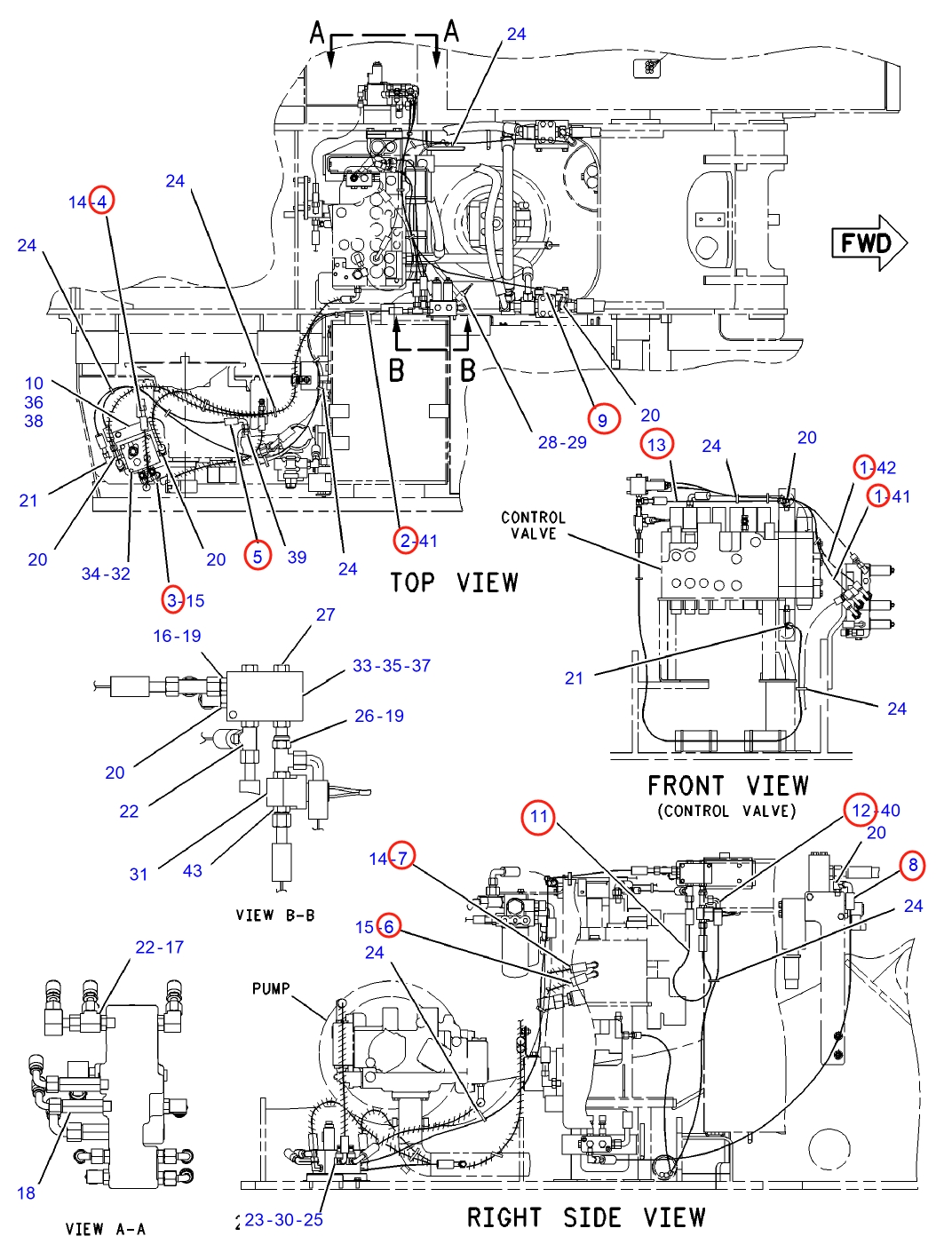

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 7Y-4193 before removing the hose.

Part number: 7Y-4193
Diagram pipe number: 2
Installation route: 电磁阀(液压泵左后)~电磁阀(分配阀右前)
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 2,500 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 13

Installation route: 蓄能器电磁阀(分配阀左)~电磁阀(分配阀右前)

Length: 600 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: 蓄能器电磁阀(分配阀左)~过渡阀块(分配阀下左)

Length: 650 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: 电磁阀(液压泵上)~蓄能器电磁阀(分配阀左)

Length: 2,000 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
