Individual hose record

5W-8008 Hose Repair Specifications

Excavator · Caterpillar · CAT®212 · Boom Assembly

Finished length5,190 mm

Locate this hose

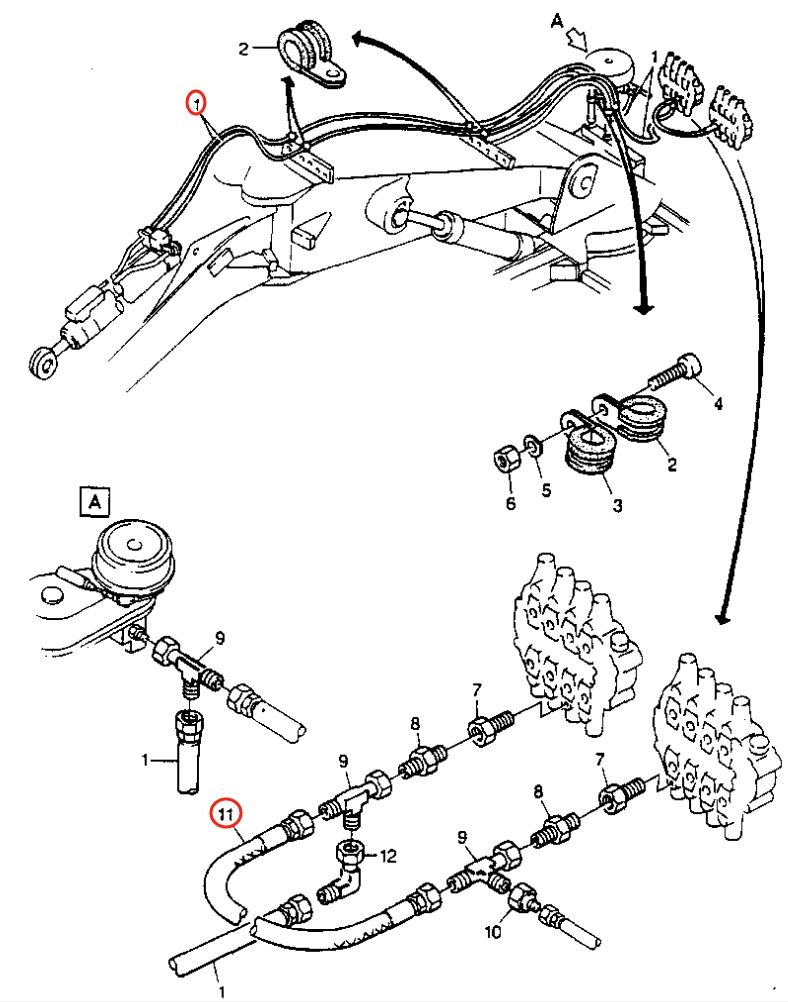

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 5W-8008 before removing the hose.

Caterpillar CAT®212 installation diagram showing hydraulic hose 5W-8008 at Pipe No. 1 — Caterpillar CAT®212Part 5W-8008 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 5W-8008
Diagram pipe number: 1
Installation route: 小臂油缸(分节油缸规格3)
Hose specification: DN13;2SN-8;27.5Mpa
Finished length: 5,190 mm
Working pressure: 27.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 6

8U-4335

Installation route: 小臂油缸(分节油缸规格4)

Length: 3,195 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 1

5W-6860

Installation route: 大臂左1/左4(规格3)

Length: 4,500 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 20

5W-6278

Installation route: 大臂油缸

Length: 700 mm
Specification: DN16;6SH-10;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 6

5W-4940

Installation route: 大臂左2/左3(规格3)

Length: 1,901 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 7

5W-1895

Installation route: 大臂(前段)~大臂(后段)

Length: 2,201 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
