Individual hose record

DS2095056 Hose Preview

Excavator · Doosan · DX140LCR · Control Lever

Finished length2,050 mm

Repair specifications

Part number
DS2095056
Diagram pipe number
101
Installation route
Left control lever port T → return valveOriginal Chinese: 左手柄T口~回油阀
Hose specification
DN10;1SN-06;18MPa
Finished length
2,050 mm
Working pressure
18 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity
1

Manual diagrams

Installation and Exploded Views

A red marker identifies a reviewed hose location.

Installation / exploded view (hose No. 101, S/N 5001-5226)

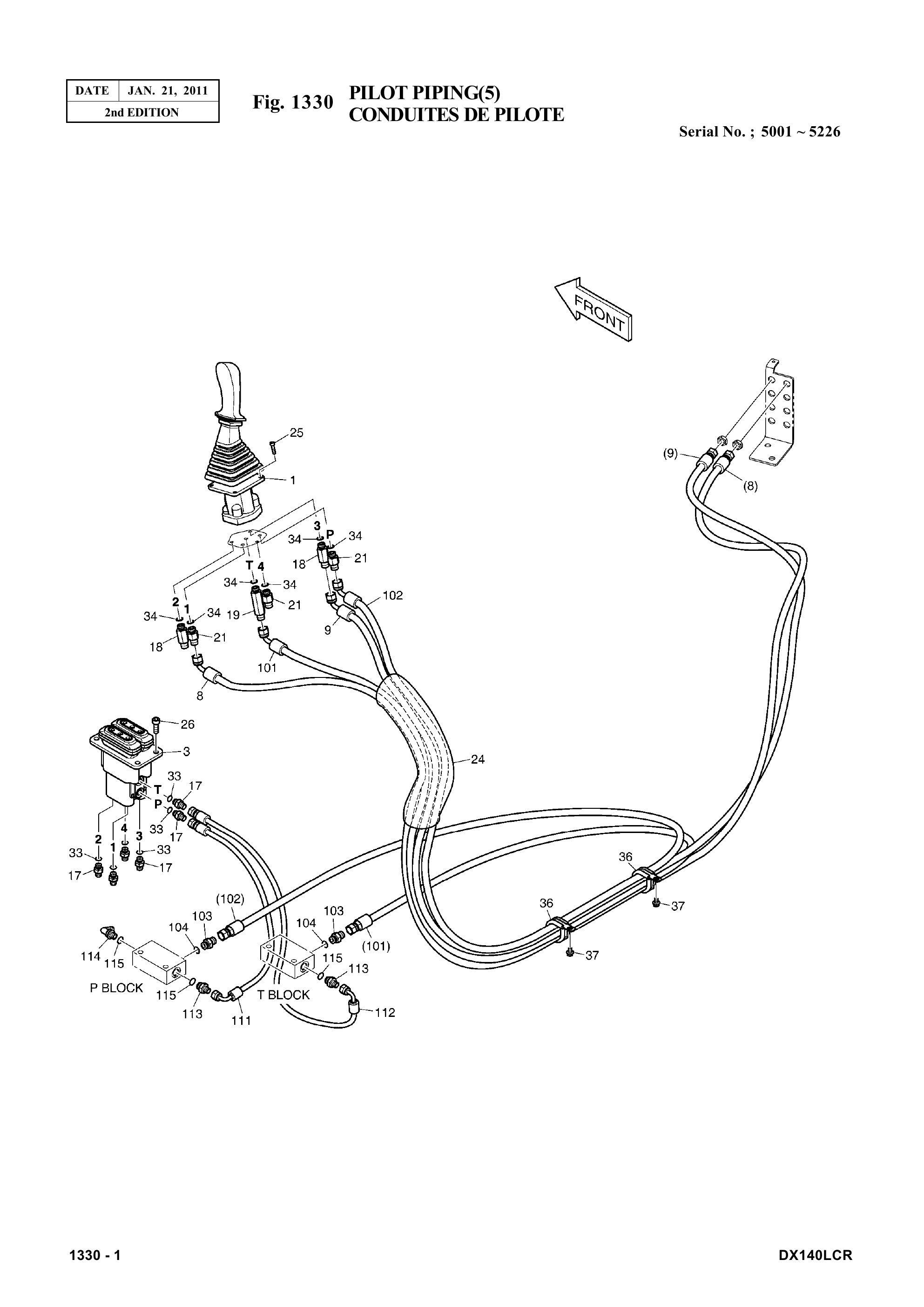

Verified hose locationInstallation / exploded view (hose No. 101, S/N 5001-5226)Current marker: Pipe No. 101Doosan DX140LCR Excavator Parts ManualManual page 182 · Printed page 1330-1 · Fig. 1330 PILOT PIPING(5); S/N 5001-5226View full-sizeDownload manual
Installation diagram

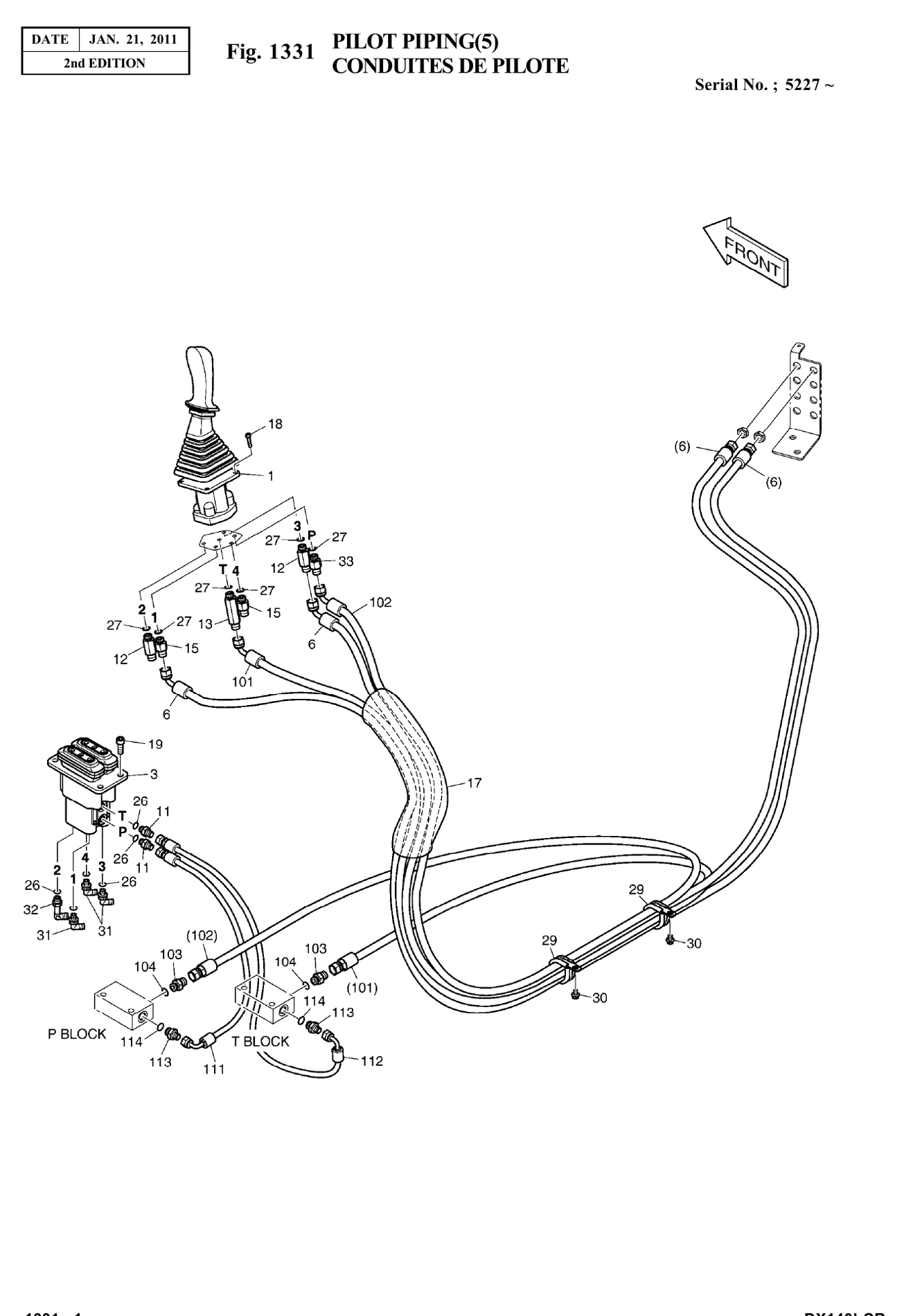

Installation diagramUse this diagram to help identify the hose. Confirm the exact position and pipe number on the machine.Doosan DX140LCR Excavator Parts ManualManual page 184 · Printed page 1331-1 · Fig. 1331View full-size

Manual references

Manual page and installation references

For reference only. Confirm the actual hose before fabrication.
