Individual hose record

4628957 Hose Repair Specifications

Excavator · Hitachi · ZX370F-FE-6N · Boom Assembly

Finished length900 mm

Locate this hose

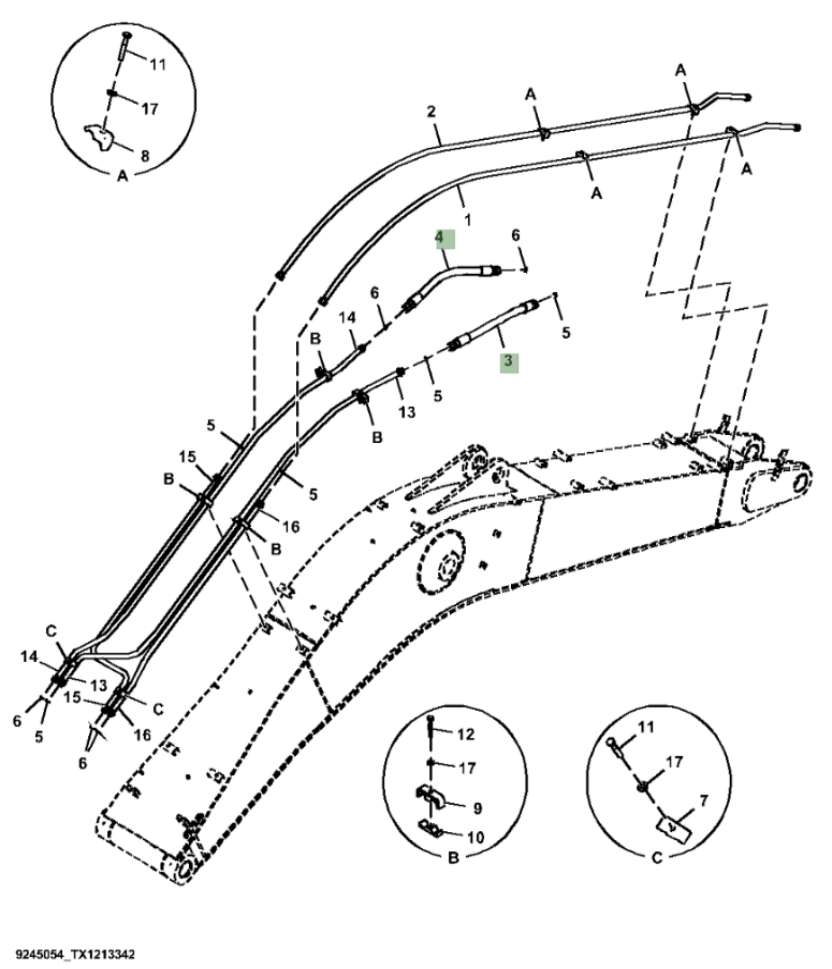

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 4628957 before removing the hose.

Hitachi ZX370F-FE-6N installation diagram showing hydraulic hose 4628957 at Pipe No. 3 — **Hitachi ZX370F-FE-6N**Part 4628957 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 4628957
Diagram pipe number: 3
Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右
Hose specification: DN32;6SH-20;42MPa
Finished length: 900 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
