Individual hose record
730502001094 Hose Repair Specifications
Excavator · Sunward · SWE18UF · Swing Motor
Finished length750 mm
Locate this hose

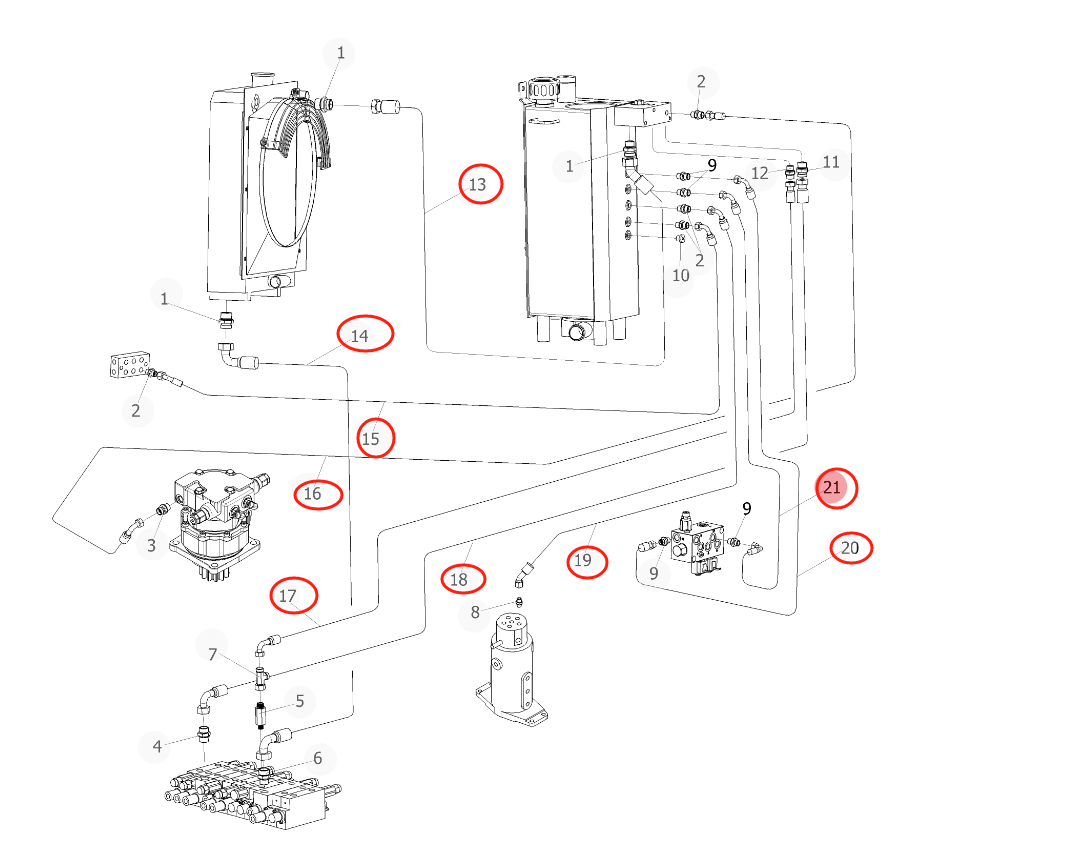

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 730502001094 before removing the hose.
Repair specifications
- Part number
- 730502001094
- Diagram pipe number
- 16
- Installation route
- 回转马达~液压油箱
- Hose specification
- DN8;1SN-05;22.5MPa
- Finished length
- 750 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
