Individual hose record
7I-0178 Hose Repair Specifications
Excavator · Caterpillar · CAT®311B · Solenoid Valve
Finished length3,200 mm
Locate this hose

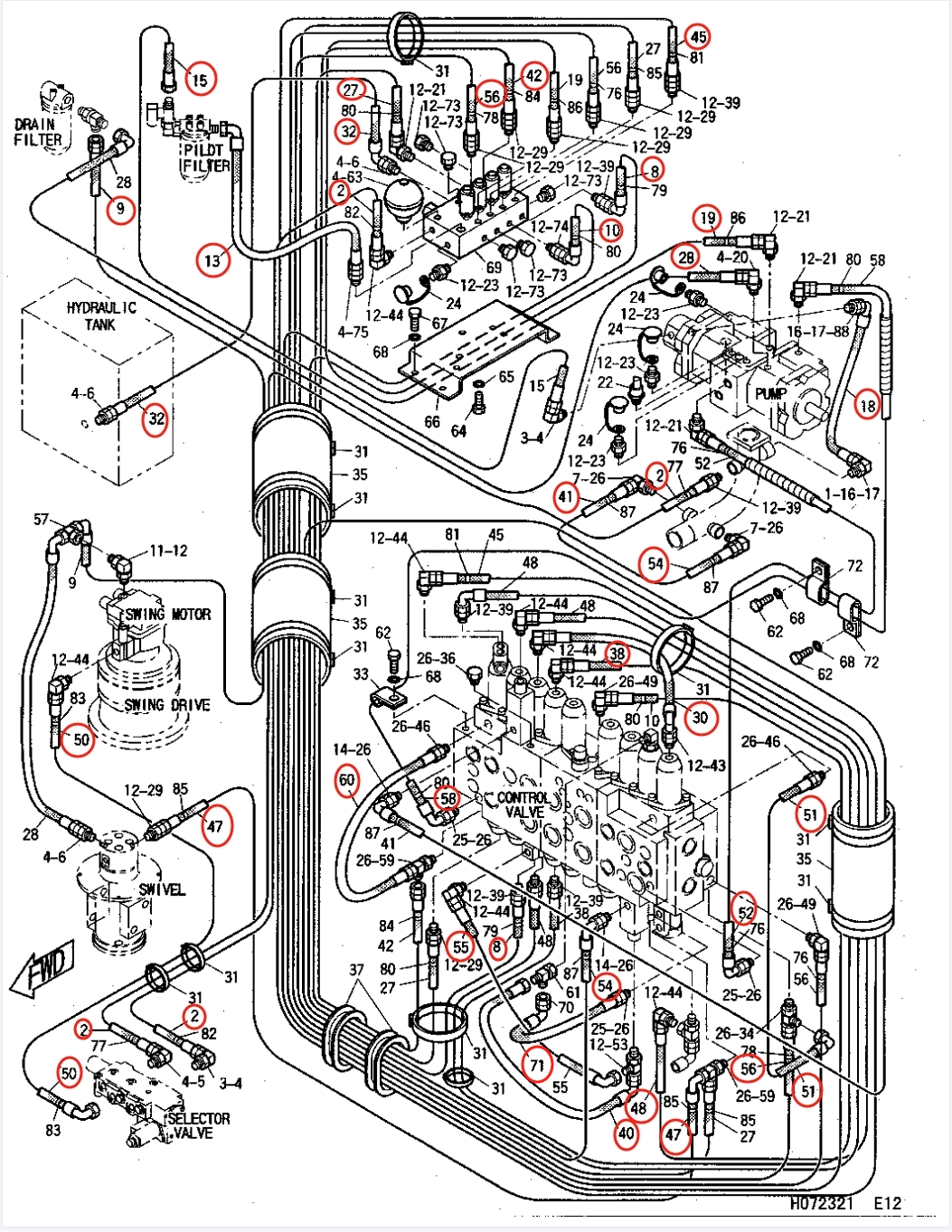

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 7I-0178 before removing the hose.
Repair specifications
- Part number
- 7I-0178
- Diagram pipe number
- 2
- Installation route
- 蓄能器电磁阀(液压油箱后)~液压泵吸油铁管
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 3,200 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 2
For reference only. Confirm the actual hose before fabrication.
