Individual hose record
DS2094361 Hose Repair Specifications
Excavator · Doosan · DX60R · Attachments
Finished length1,740 mm
Locate this hose

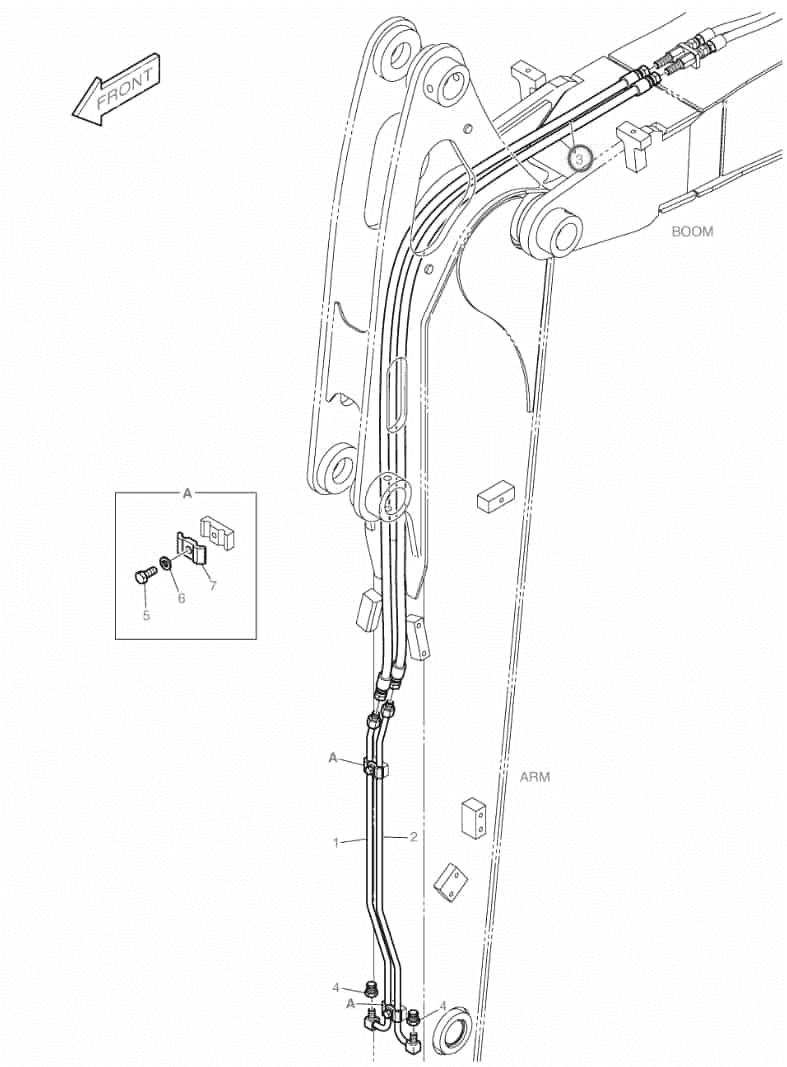

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number DS2094361 before removing the hose.
Repair specifications
- Part number
- DS2094361
- Diagram pipe number
- 3
- Installation route
- 开关阀(小臂侧)~堵头
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,740 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 2
