7V-0916 Hose Repair Specifications

Excavator · Caterpillar · CAT®235B · Fuel Lines

Finished length400 mm

Locate this hose

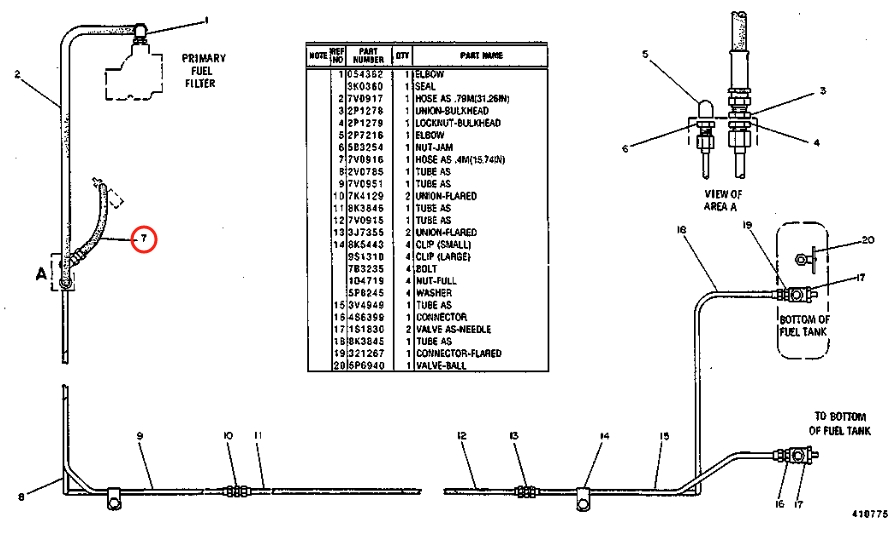

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 7V-0916 before removing the hose.

Caterpillar CAT®235B installation diagram showing hydraulic hose 7V-0916 at Pipe No. 7 — Caterpillar CAT®235BPart 7V-0916 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 7V-0916
Diagram pipe number: 7
Installation route: 燃油喷油泵~燃油箱
Hose specification: DN6;1SN-4;19.2Mpa
Finished length: 400 mm
Working pressure: 19.2 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
