Individual hose record
4685535 Hose Repair Specifications
Excavator · Hitachi · ZX60USB-3 · Attachments
Finished length510 mm
Locate this hose

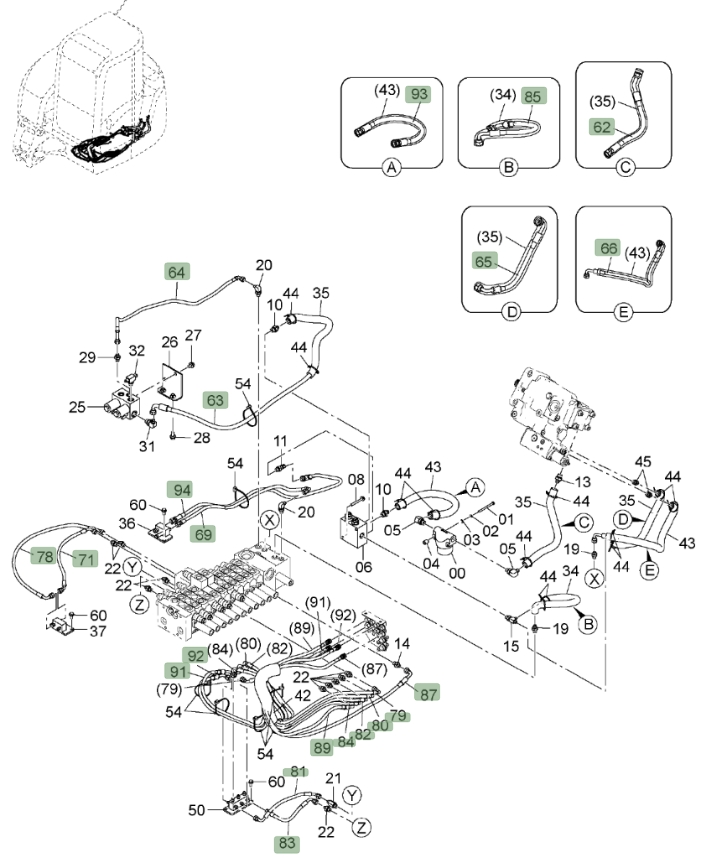

Installation diagram — Pipe No. 93
Locate Pipe No. 93 in the diagram, then confirm part number 4685535 before removing the hose.
Repair specifications
- Part number
- 4685535
- Diagram pipe number
- 93
- Installation route
- 先导滤芯~过渡阀块(液压油箱)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 510 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
