Individual hose record
177-2177 Hose Repair Specifications
Excavator · Caterpillar · CAT®M312 · Control Valve
Finished length670 mm
Locate this hose

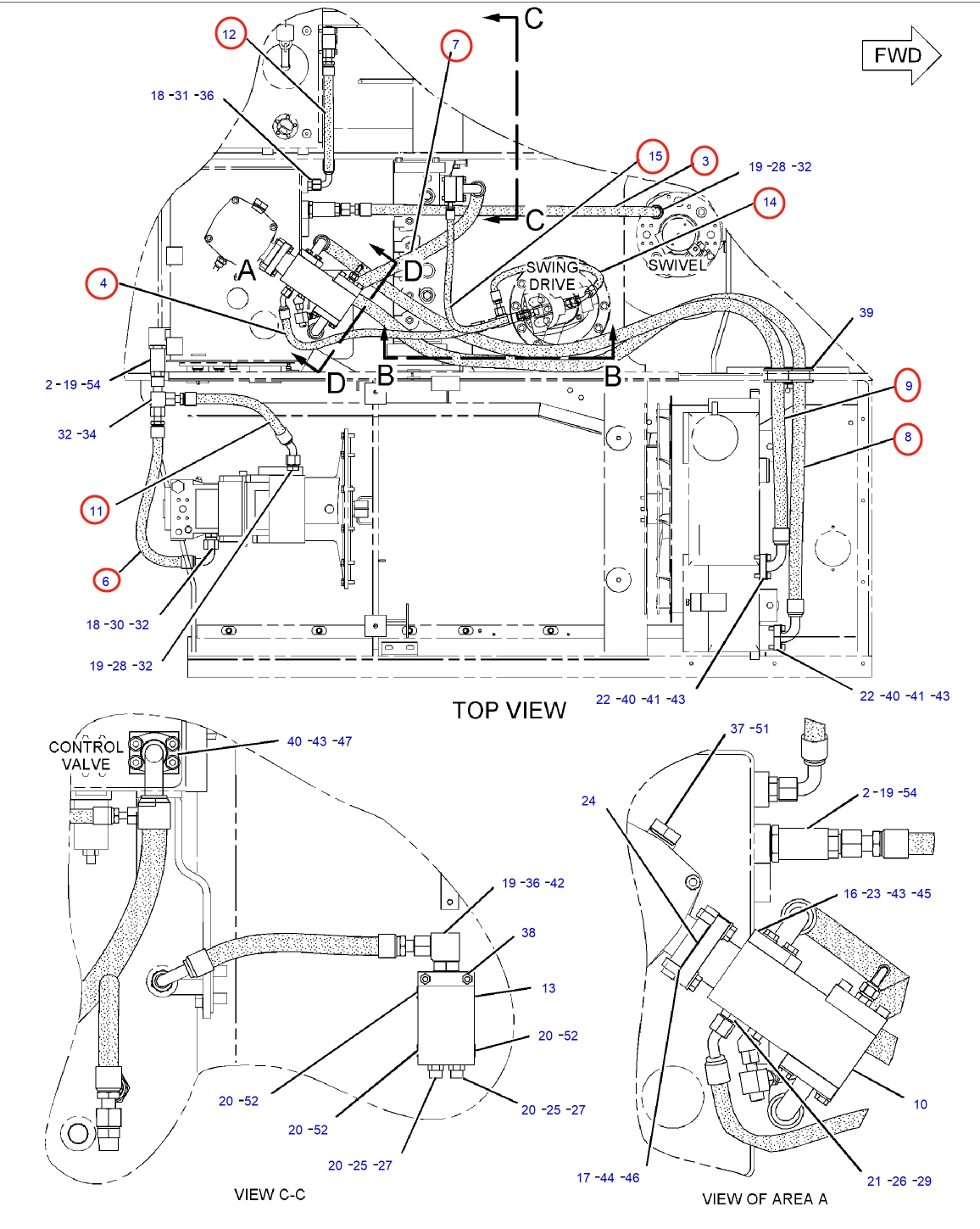

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number 177-2177 before removing the hose.
Repair specifications
- Part number
- 177-2177
- Diagram pipe number
- 15
- Installation route
- 分配阀下左~回转马达
- Hose specification
- DN10;1SN-6;15.7Mpa
- Finished length
- 670 mm
- Working pressure
- 15.7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
