Individual hose record

3V-9113 Hose Repair Specifications

Excavator · Caterpillar · CAT®225D · Attachments

Finished length3,450 mm

Locate this hose

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 3V-9113 before removing the hose.

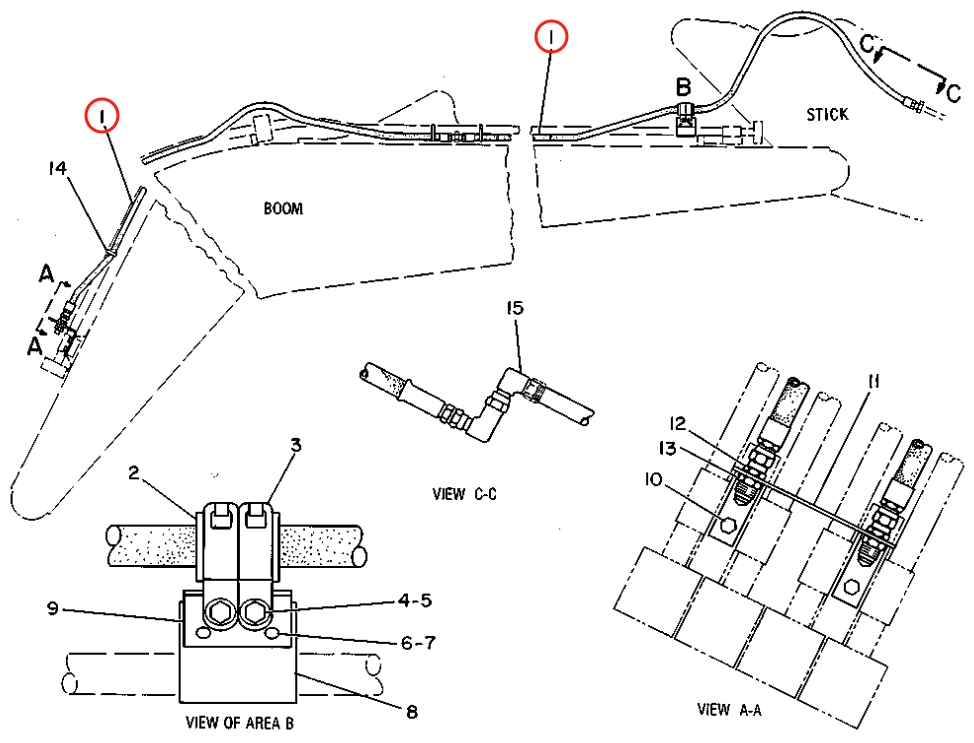

Caterpillar CAT®225D installation diagram showing hydraulic hose 3V-9113 at Pipe No. 1 — Caterpillar CAT®225DPart 3V-9113 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 3V-9113
Diagram pipe number: 1
Installation route: 大臂(前段)~大臂(后段)
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 3,450 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制外螺纹37°锥
Quantity: 4

Same system

Related Hoses

Diagram Pipe No. 17

2G-3738

Installation route: 控制阀(发动机前)~接线板(回转马达右)

Length: 1,510 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 1

8K-4024

Installation route: 回油滤芯~液压油散热器

Length: 558 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 17

1V-9721

Installation route: 过渡阀块(回转马达左)~选择阀(分配阀右)

Length: 762 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 25

7V-0719

Installation route: 控制阀(发动机前)~接线板(回转马达右)

Length: 1,360 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 35

6W-5415

Installation route: 先导阀(分配阀后)~过渡阀块(分配阀上)

Length: 415 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 9

3V-4655

Installation route: 电磁阀(大臂下)~大臂(后段)

Length: 1,900 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 4

6W-4640

Installation route: 控制阀(发动机前)~驾驶室(右手柄后)

Length: 794 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
