Individual hose record
8U-0109 Hose Repair Specifications
Excavator · Caterpillar · CAT®214B FT · Solenoid Valve
Finished length1,386 mm
Locate this hose

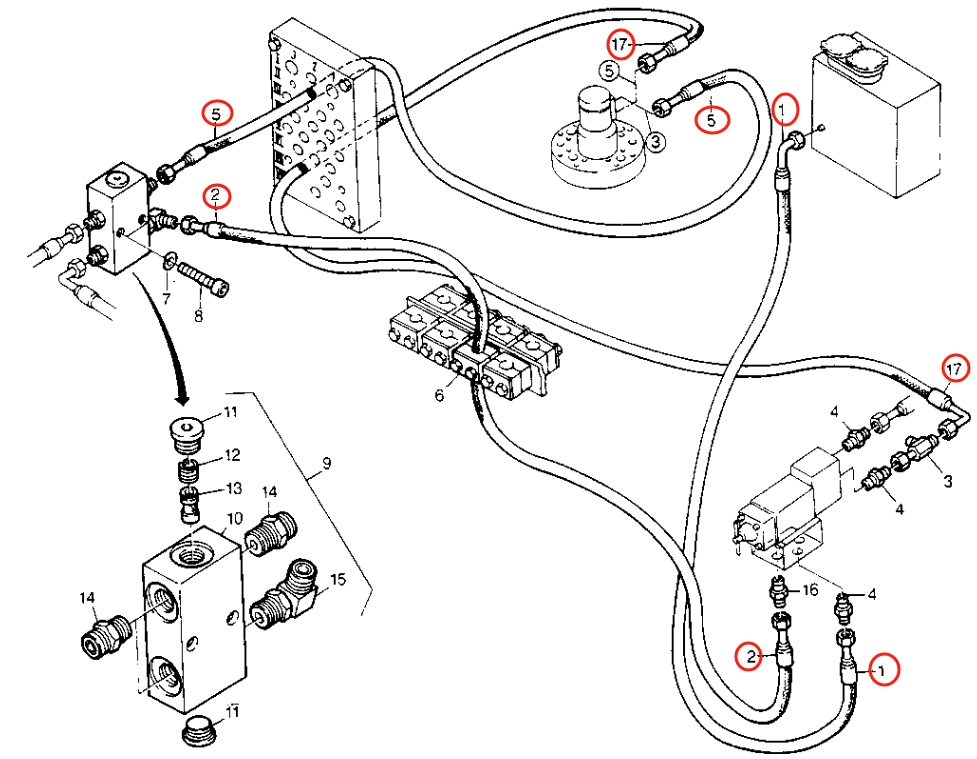

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 8U-0109 before removing the hose.
Repair specifications
- Part number
- 8U-0109
- Diagram pipe number
- 2
- Installation route
- 电磁阀~过渡阀块(连接回转接头)
- Hose specification
- DN10;2SN-6;33Mpa
- Finished length
- 1,386 mm
- Working pressure
- 33 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
