Individual hose record

8U-6231 Hose Repair Specifications

Excavator · Caterpillar · CAT®211B · Attachments – Breaker

Finished length5,050 mm

Locate this hose

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 8U-6231 before removing the hose.

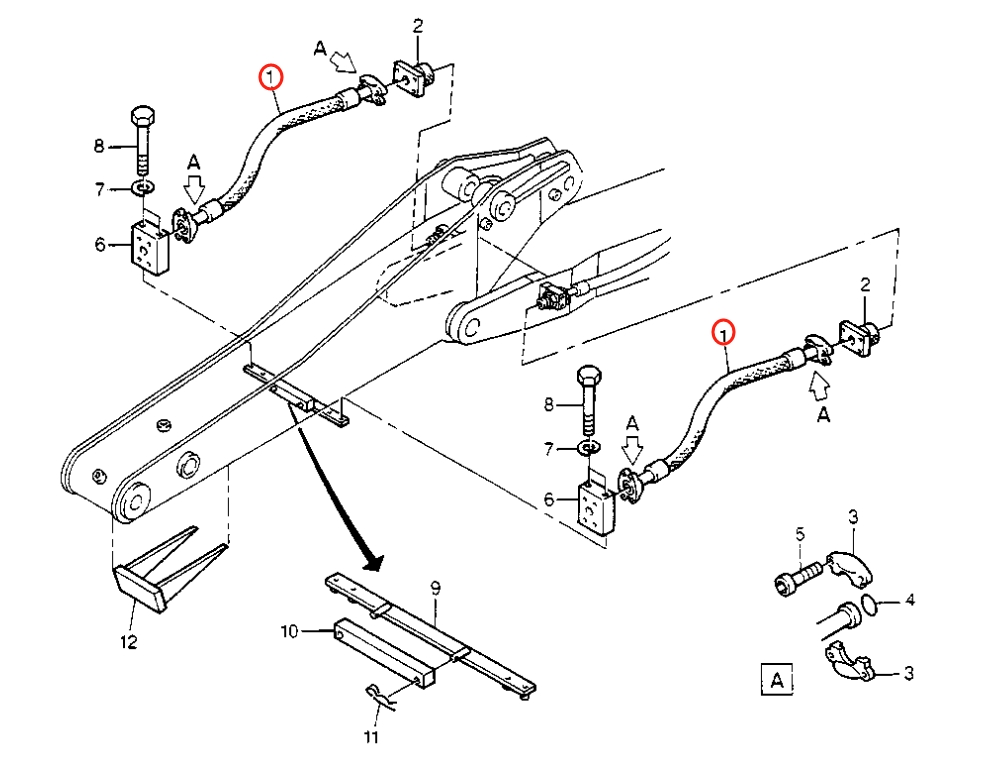

Caterpillar CAT®211B installation diagram showing hydraulic hose 8U-6231 at Pipe No. 1 — **Caterpillar CAT®211B**Part 8U-6231 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 8U-6231
Diagram pipe number: 1
Installation route: 小臂破碎器截止阀
Hose specification: DN19;4SP-12;35Mpa
Finished length: 5,050 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 5

8U-6492

Installation route: 大臂(破碎器)~破碎器

Length: 2,350 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 1

8U-6490

Installation route: 大臂(破碎器)~破碎器

Length: 4,247 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

8U-6483

Installation route: 小臂破碎器截止阀

Length: 5,443 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 1

8U-6488

Installation route: 大臂(破碎器)~破碎器

Length: 3,546 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

8U-6204

Installation route: 小臂破碎器截止阀

Length: 960 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 1

8U-1882

Installation route: 小臂破碎器截止阀

Length: 1,400 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 1

8U-6223

Installation route: 小臂破碎器截止阀

Length: 1,895 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 4

8U-7538

Installation route: 大臂(破碎器)~破碎器

Length: 2,349 mm
Specification: DN25;4SP-16;28Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
