Individual hose record

248-9443 Hose Repair Specifications

Excavator · Caterpillar · CAT®311F LRR · Solenoid Valve

Finished length440 mm

Locate this hose

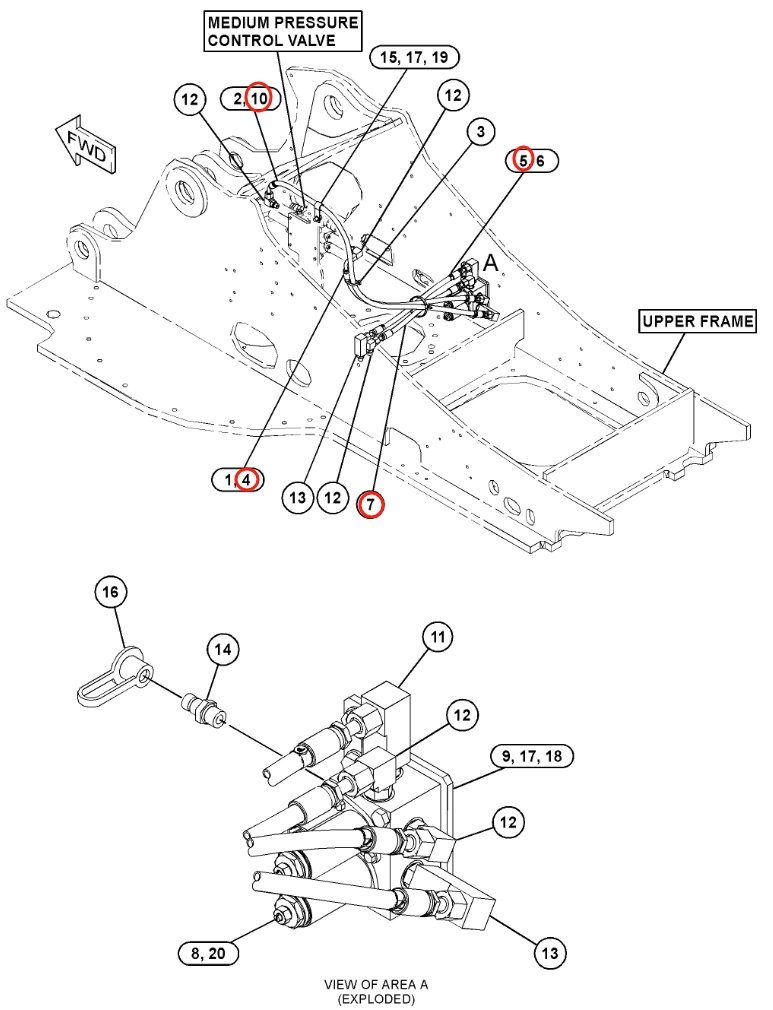

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 248-9443 before removing the hose.

Part number: 248-9443
Diagram pipe number: 7
Installation route: 电磁阀(回转马达右)~
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 440 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 5

Installation route: 电磁阀(回转马达右)~

Length: 510 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 8

Installation route: 电磁阀(回转接头上)~驾驶室

Length: 1,650 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
