Individual hose record

142-4845 Hose Repair Specifications

Excavator · Caterpillar · CAT®M312 · Boom Assembly

Finished length1,045 mm

Locate this hose

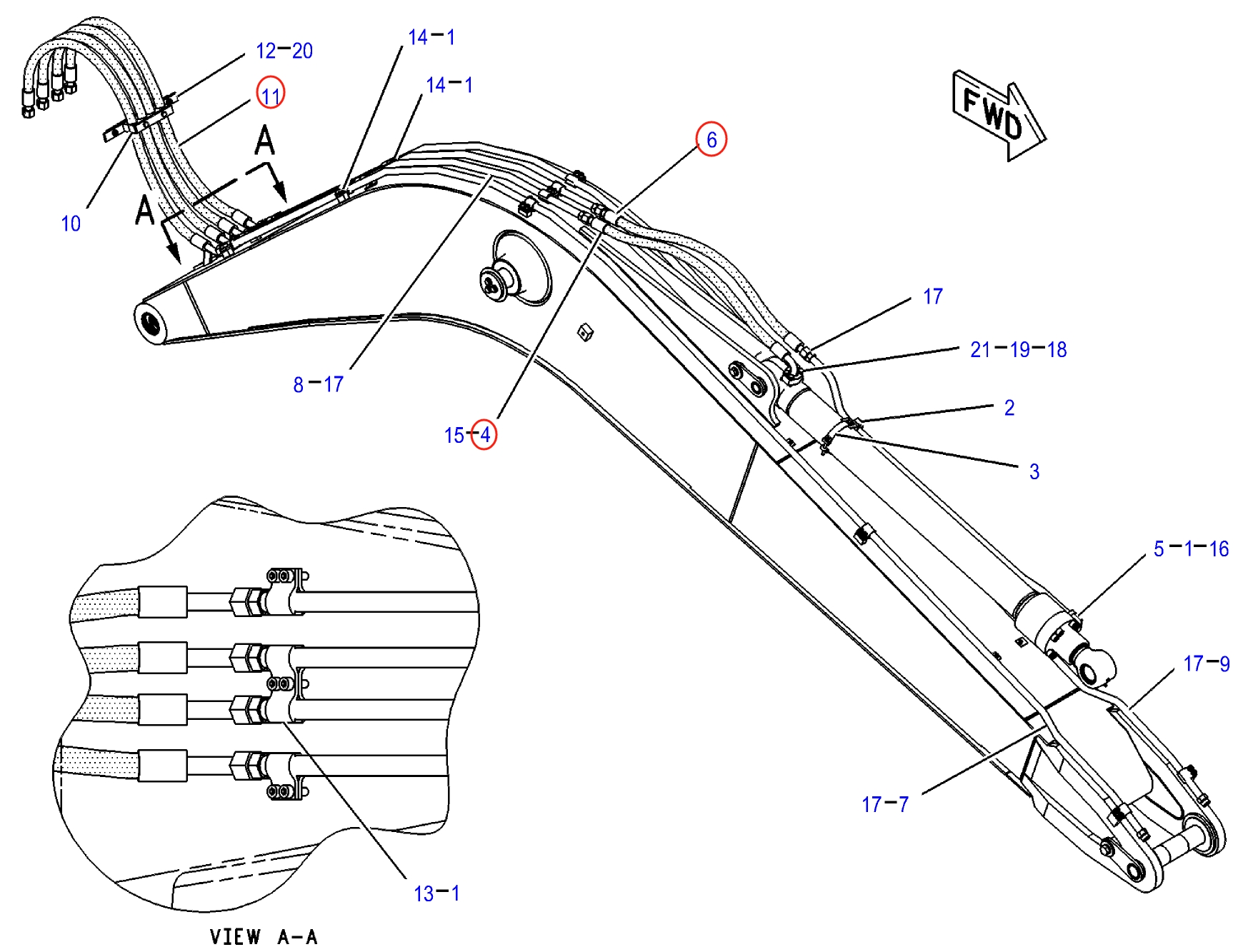

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 142-4845 before removing the hose.

Caterpillar CAT®M312 installation diagram showing hydraulic hose 142-4845 at Pipe No. 6 — **Caterpillar CAT®M312**Part 142-4845 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 142-4845
Diagram pipe number: 6
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN19;4SP-12;35Mpa
Finished length: 1,045 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

145-4968

Installation route: 铲斗油缸~分流阀(小臂)

Length: 1,020 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 9

142-7439

Installation route: 分节油缸右(前段)

Length: 680 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 26

148-7094

Installation route: 大臂(中段)~大臂(后段)

Length: 5,000 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 23

150-7619

Installation route: 大臂左2(分节油缸规格)

Length: 4,920 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 15

147-0014

Installation route: 大臂左1/左4(分节油缸规格)

Length: 3,950 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
