Individual hose record

8U-3332 Hose Repair Specifications

Excavator · Caterpillar · CAT®224B · Attachments

Finished length7,691 mm

Locate this hose

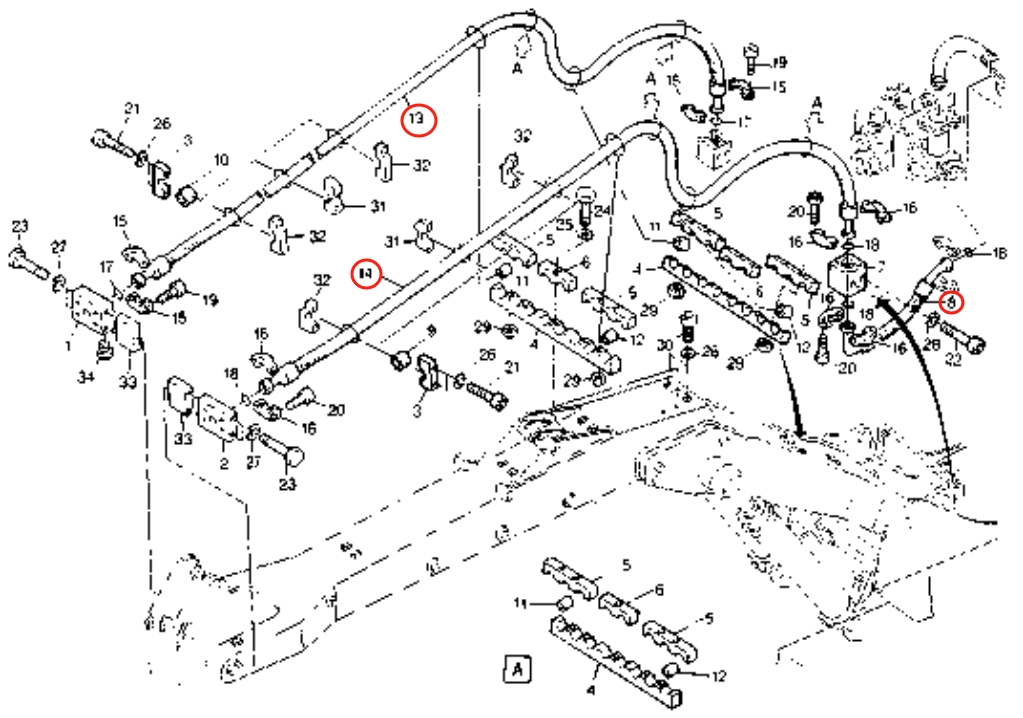

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 8U-3332 before removing the hose.

Caterpillar CAT®224B installation diagram showing hydraulic hose 8U-3332 at Pipe No. 14 — **Caterpillar CAT®224B**Part 8U-3332 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 8U-3332
Diagram pipe number: 14
Installation route: 过渡阀块(大臂)~过渡阀块(小臂)
Hose specification: DN32;2SN-20;12.5Mpa
Finished length: 7,691 mm
Working pressure: 12.5 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 16

8U-3097

Installation route: 后桥~过渡接头(回转接头旁)

Length: 901 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 23

8U-3095

Installation route: 前桥~过渡接头(回转接头旁)

Length: 1,750 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

8U-1885

Installation route: 大臂铁管~快速断开连接器(小臂)

Length: 2,400 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 4

8U-4200

Installation route: 大臂油缸~大臂油缸

Length: 1,066 mm
Specification: DN25;4SP-16;28Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 1

8U-1887

Installation route: 大臂铁管~快速断开连接器(小臂)

Length: 2,200 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 3

8U-3405

Installation route: 大臂接头总成~大臂铁管

Length: 3,700 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 13

8U-3331

Installation route: 过渡阀块(大臂)~过渡阀块(小臂)

Length: 7,695 mm
Specification: DN25;4SP-16;28Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 10

8U-2653

Installation route: 大臂附加装置管

Length: 10,396 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
