4272697 Hose Repair Specifications

Excavator · Hitachi · EX270LC-5 · Boom Assembly

Repair dataOpen with a pass

Locate this hose

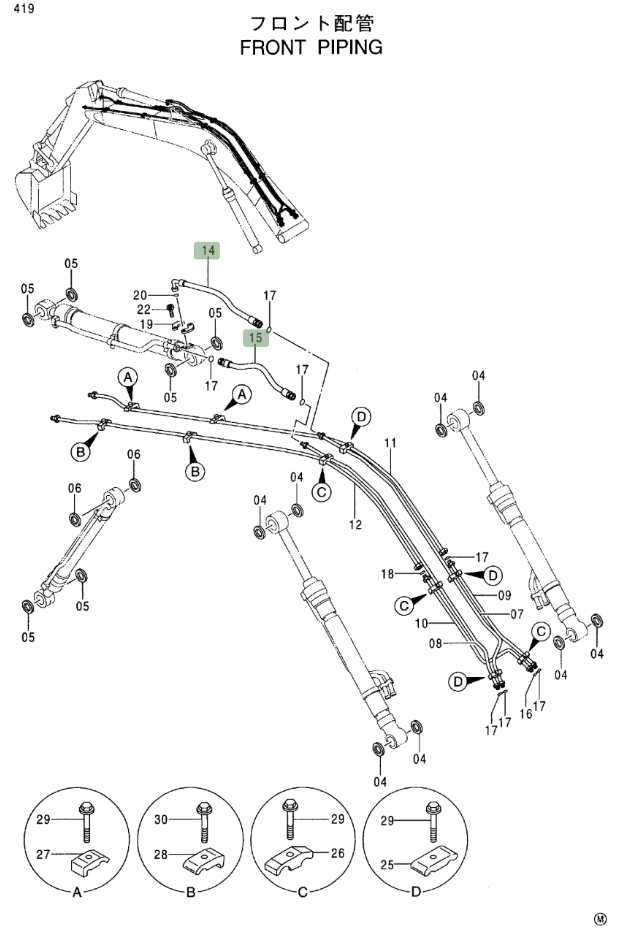

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 4272697 before removing the hose.

Hitachi EX270LC-5 installation diagram showing hydraulic hose 4272697 at Pipe No. 15 — **Hitachi EX270LC-5**Part 4272697 · Pipe No. 15Open full-size diagram

Identify this hose

Part number: 4272697
Diagram pipe number: 15
System: Boom Assembly
Installation route: Arm cylinder — left
