Individual hose record
4277867 Hose Repair Specifications
Excavator · Hitachi · EX200LC-3 · Swing Motor
Finished length780 mm
Locate this hose

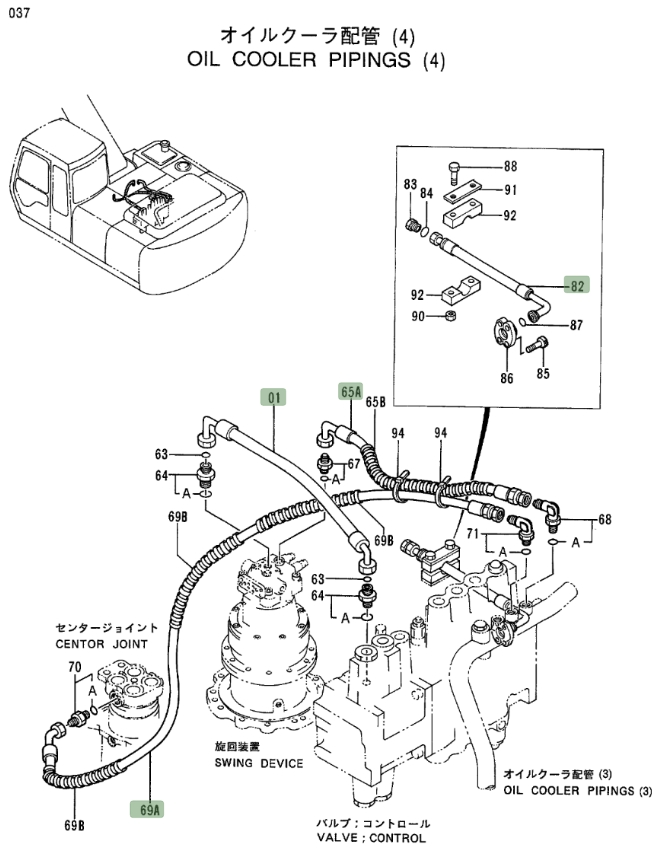

Installation diagram — Pipe No. 65A
Locate Pipe No. 65A in the diagram, then confirm part number 4277867 before removing the hose.
Repair specifications
- Part number
- 4277867
- Diagram pipe number
- 65A
- Installation route
- Swing motor → return steel line (hydraulic tank)Original Chinese: 回转马达~回油铁管(液压油箱)
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 780 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 600 mm
- Specification
- DN6;2SN-4;34.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 420 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
For reference only. Confirm the actual hose before fabrication.
