Individual hose record
087-5761 Hose Repair Specifications
Excavator · Caterpillar · CAT®314F CR · Control Valve
Finished length1,250 mm
Locate this hose

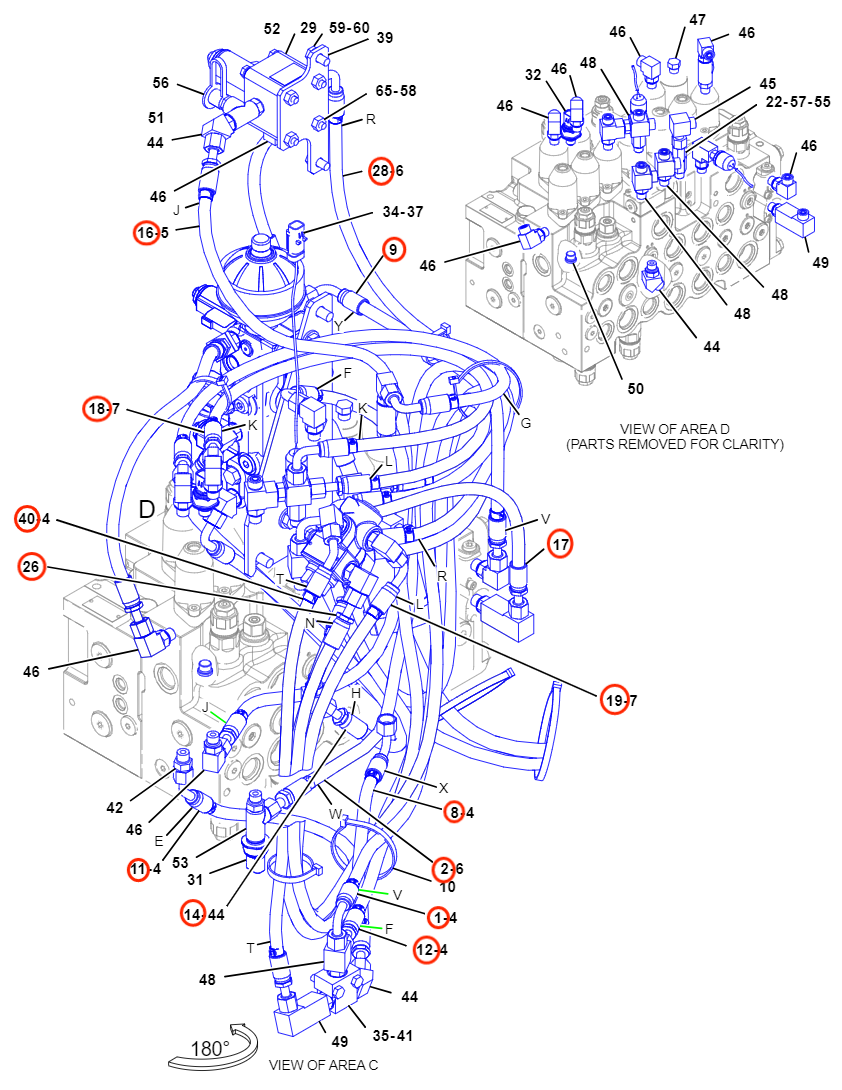

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 087-5761 before removing the hose.
Repair specifications
- Part number
- 087-5761
- Diagram pipe number
- 16
- Installation route
- 分配阀下~电磁阀(分配阀上)前
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 1,250 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
- Length
- 2,200 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 630 mm
- Specification
- DN10;-6;10.3Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 450 mm
- Specification
- DN10;6SH-6;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,400 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
For reference only. Confirm the actual hose before fabrication.
