Individual hose record

8K-4024 Hose Repair Specifications

Excavator · Caterpillar · CAT®225B · Hydraulic Tank

Finished length558 mm

Locate this hose

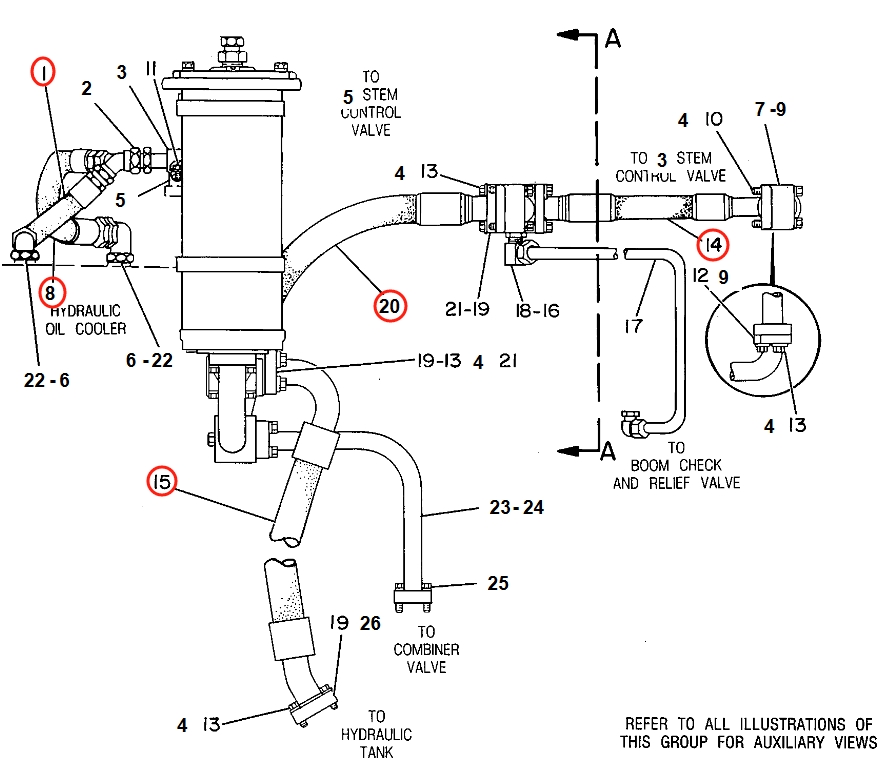

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 8K-4024 before removing the hose.

Caterpillar CAT®225B installation diagram showing hydraulic hose 8K-4024 at Pipe No. 8 — Caterpillar CAT®225BPart 8K-4024 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 8K-4024
Diagram pipe number: 8
Installation route: 液压油过滤器~液压油散热器
Hose specification: DN25;1SN-16;7Mpa
Finished length: 558 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

8K-4022

Installation route: 液压油过滤器~液压油散热器

Length: 275 mm
Specification: DN25;2层纤维+螺旋钢丝-16;1.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
