Individual hose record
2V-0509 Hose Repair Specifications
Excavator · Caterpillar · CAT®245 · Attachments
Finished length1,750 mm
Locate this hose

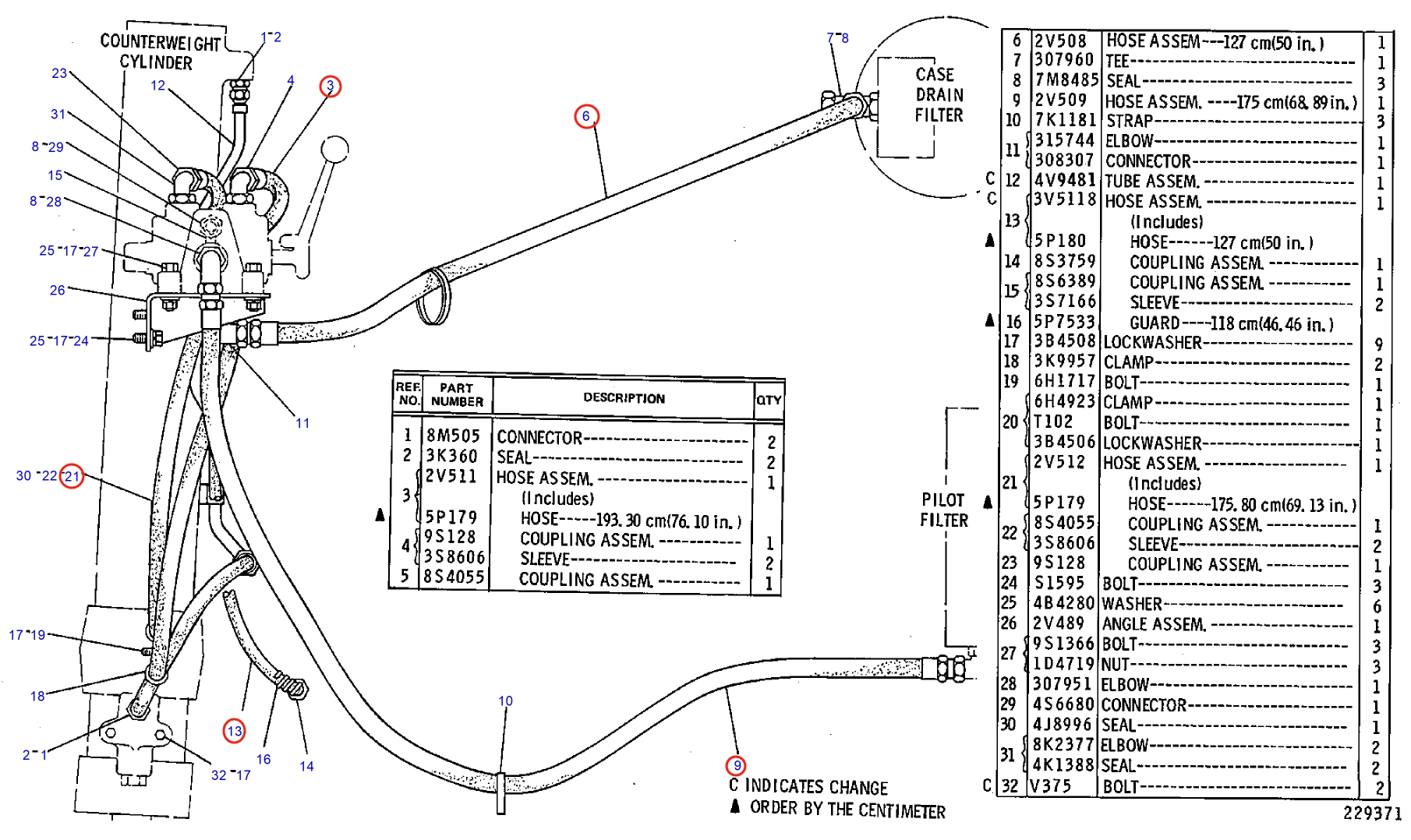

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 2V-0509 before removing the hose.
Repair specifications
- Part number
- 2V-0509
- Diagram pipe number
- 9
- Installation route
- 控制阀(配重块)~先导滤芯
- Hose specification
- DN19;1SN-12;8.7Mpa
- Finished length
- 1,750 mm
- Working pressure
- 8.7 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,622 mm
- Specification
- DN25;4SP-16;35Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Length
- 1,605 mm
- Specification
- DN25;4SP-16;35Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Length
- 1,845 mm
- Specification
- DN13;4SP-8;28Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,980 mm
- Specification
- DN10;4SP-6;28Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,700 mm
- Specification
- DN25;4SP-16;35Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Length
- 1,622 mm
- Specification
- DN25;4SP-16;35Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Length
- 2,020 mm
- Specification
- DN13;4SP-8;28Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
For reference only. Confirm the actual hose before fabrication.
