Individual hose record

5C-4176 Hose Repair Specifications

Excavator · Caterpillar · CAT®215B · Swivel Joint

Finished length840 mm

Locate this hose

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 5C-4176 before removing the hose.

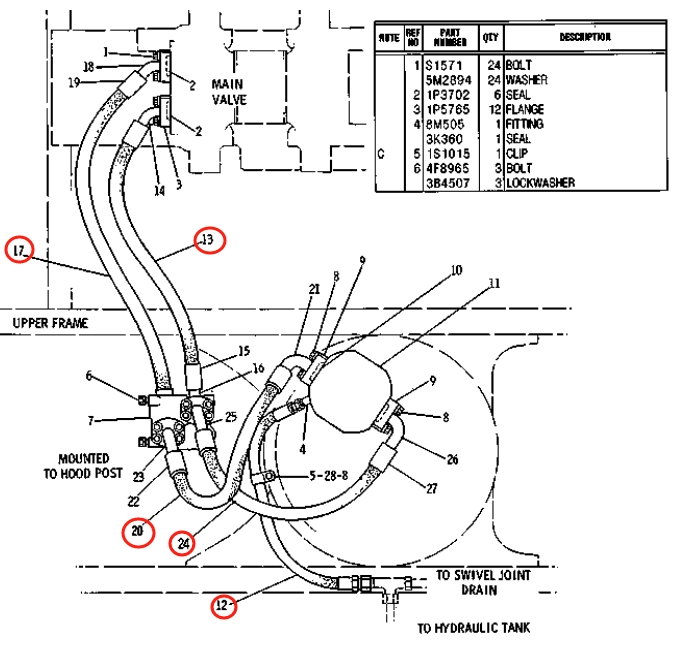

Caterpillar CAT®215B installation diagram showing hydraulic hose 5C-4176 at Pipe No. 12 — Caterpillar CAT®215BPart 5C-4176 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 5C-4176
Diagram pipe number: 12
Installation route: 回转接头~液压油箱
Hose specification: DN16;1SN-10;10.5Mpa
Finished length: 840 mm
Working pressure: 10.5 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
