Individual hose record

185-6791 Hose Repair Specifications

Excavator · Caterpillar · CAT®M317F · Attachments – Lock Valve

Finished length3,760 mm

Locate this hose

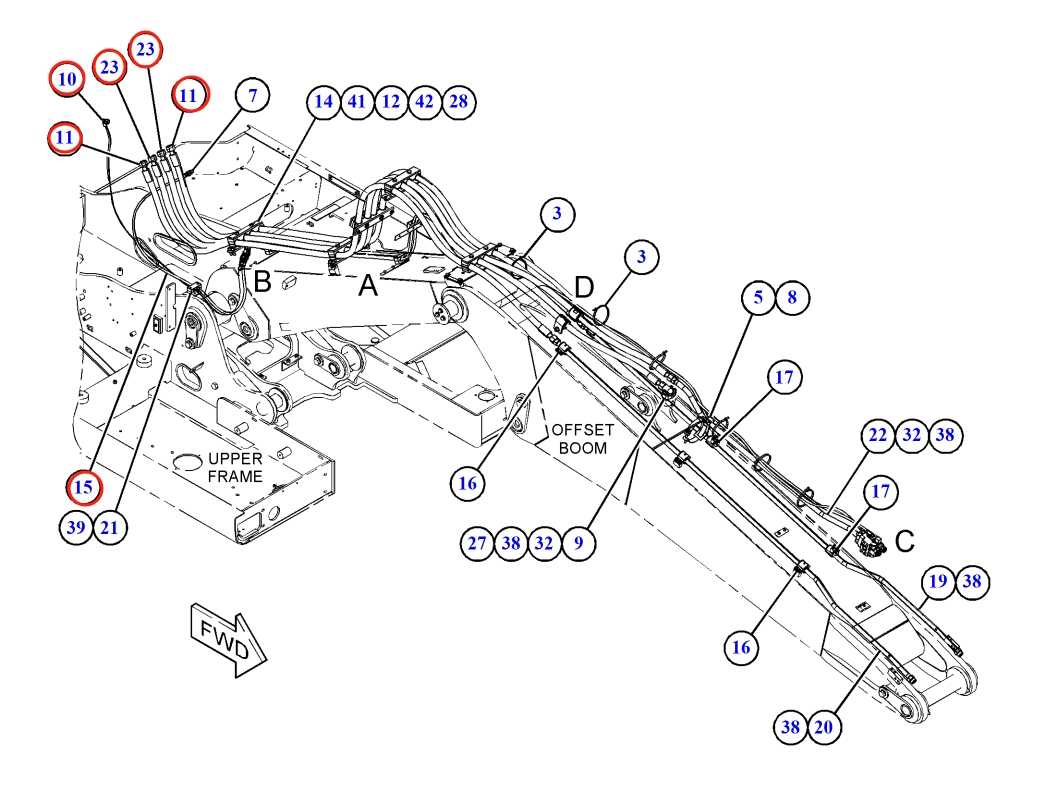

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 185-6791 before removing the hose.

Caterpillar CAT®M317F installation diagram showing hydraulic hose 185-6791 at Pipe No. 11
Caterpillar CAT®M317FPart 185-6791 · Pipe No. 11Open full-size diagram

Repair specifications

Part number
185-6791
Diagram pipe number
11
Installation route
小臂油缸锁止阀管路
Hose specification
DN19;6SH-12;42Mpa
Finished length
3,760 mm
Working pressure
42 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
2

Same system

Related Hoses

Diagram Pipe No. 19

228-9540

Installation route: 大臂油缸锁止阀~单向阀

Length
724 mm
Specification
DN10;2SN-6;33Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 24

495-7720

Installation route: 控制阀(锁止阀)~单向阀

Length
1,455 mm
Specification
DN19;6SH-12;42Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 29

221-9470

Installation route: 大臂油缸锁止阀~液压油箱

Length
2,200 mm
Specification
DN16;1SN-10;10.5Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 34

466-1188

Installation route: 小臂油缸锁止阀管路

Length
2,850 mm
Specification
DN10;2SN-6;33Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 35

466-1189

Installation route: 小臂油缸锁止阀管路

Length
2,670 mm
Specification
DN10;2SN-6;33Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 23

190-8539

Installation route: 大臂油缸锁止阀

Length
370 mm
Specification
DN6;2SN-4;40Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 23

444-8209

Installation route: 小臂油缸锁止阀管路

Length
4,440 mm
Specification
DN19;6SH-12;42Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
