Individual hose record

4447483 Hose Repair Specifications

Excavator · Hitachi · ZX135US · Swivel Joint

Finished length1,900 mm

Locate this hose

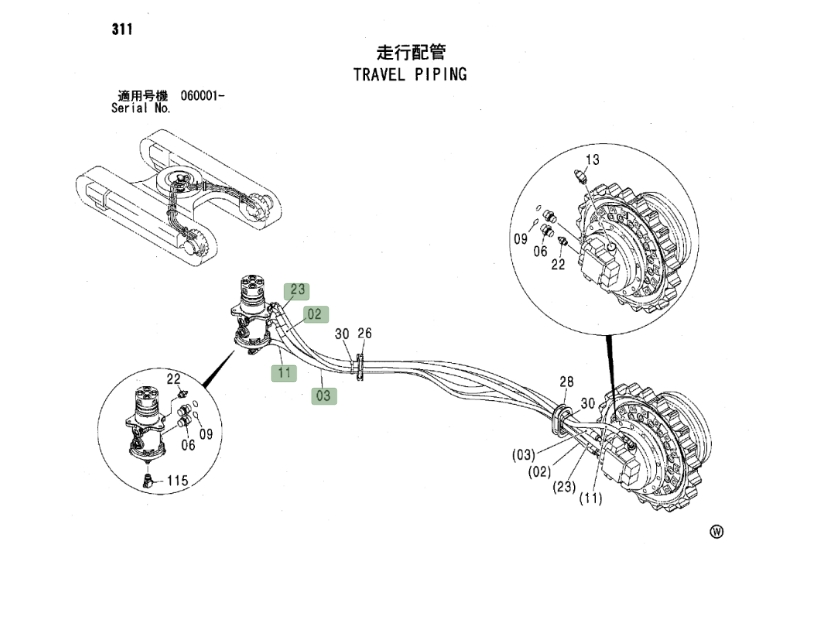

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 4447483 before removing the hose.

Hitachi ZX135US installation diagram showing hydraulic hose 4447483 at Pipe No. 11 — Hitachi ZX135USPart 4447483 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: 4447483
Diagram pipe number: 11
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,900 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 23

4447490

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 1,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
