Individual hose record

8U-4540 Hose Repair Specifications

Excavator · Caterpillar · CAT®206B · Swivel Joint

Finished length2,400 mm

Locate this hose

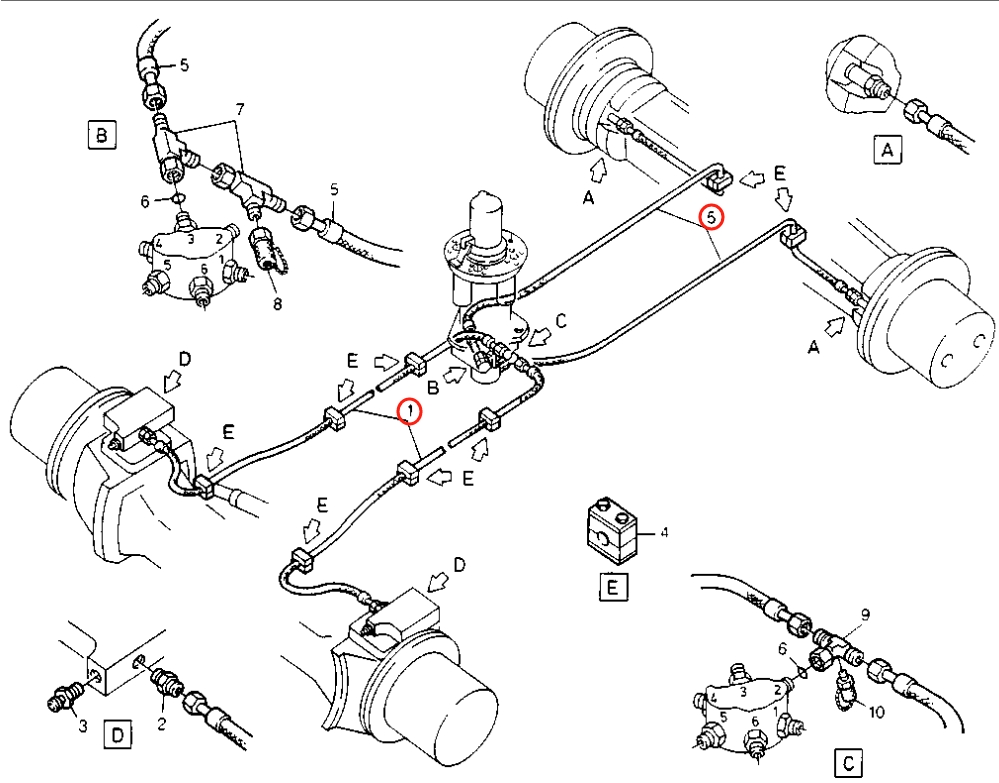

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 8U-4540 before removing the hose.

Part number: 8U-4540
Diagram pipe number: 1
Installation route: 回转接头~前传动轴
Hose specification: DN10;2SN-6;33Mpa
Finished length: 2,400 mm
Working pressure: 33 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 10

Installation route: 回转接头~前桥支腿油缸

Length: 1,200 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 18

Installation route: 回转接头~后桥

Length: 590 mm
Specification: DN13;2SN-8;27.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 5

Installation route: 回转接头~后桥

Length: 1,705 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
