Individual hose record
DS2091163 Hose Preview
Excavator · Doosan · DX140LCR · Attachments – Lock Valve
Finished length650 mm
Repair specifications
- Part number
- DS2091163
- Diagram pipe number
- 21
- Installation route
- Boom-cylinder lock valve ports T/PIL → connector plate (boom-cylinder lock valve)Original Chinese: 大臂油缸锁止阀T/PIL口~接线板(大臂油缸锁止阀)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 650 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 4
Manual diagrams

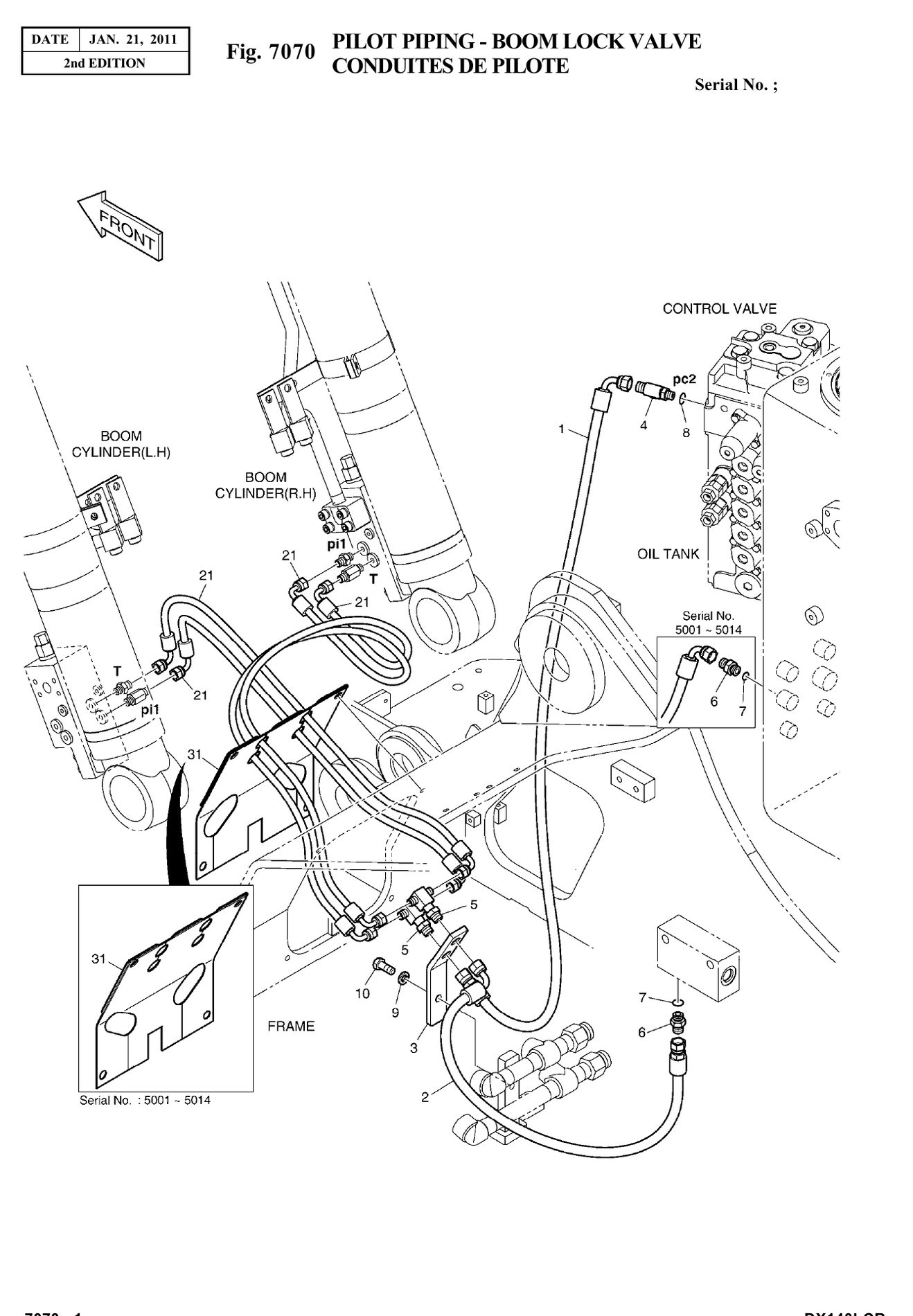

Installation and Exploded Views
A red marker identifies a reviewed hose location.
For reference only. Confirm the actual hose before fabrication.
