Individual hose record
DS2093090 Hose Preview
Excavator · Doosan · DX140LCR · Attachments – Lock Valve
Finished length800 mm
Repair specifications
- Part number
- DS2093090
- Diagram pipe number
- 9
- Installation route
- Control valve port PC1 → connector plate (under boom)Original Chinese: 分配阀PC1口~接线板(大臂下)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 800 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
Manual diagrams
Installation and Exploded Views

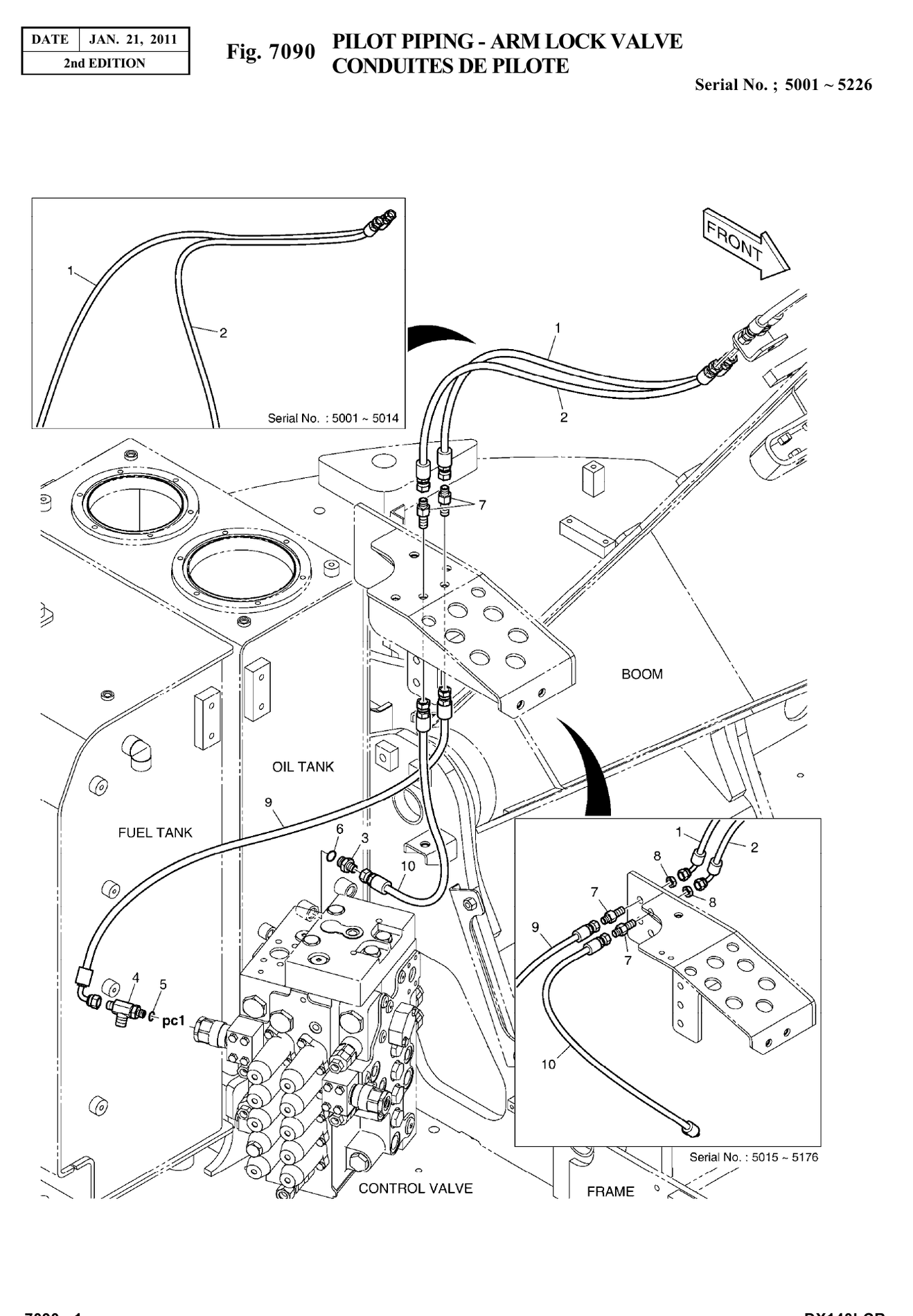

A red marker identifies a reviewed hose location.
For reference only. Confirm the actual hose before fabrication.
