Individual hose record

2V-5956 Hose Repair Specifications

Excavator · Caterpillar · CAT®219D · Fuel Lines

Finished length534 mm

Locate this hose

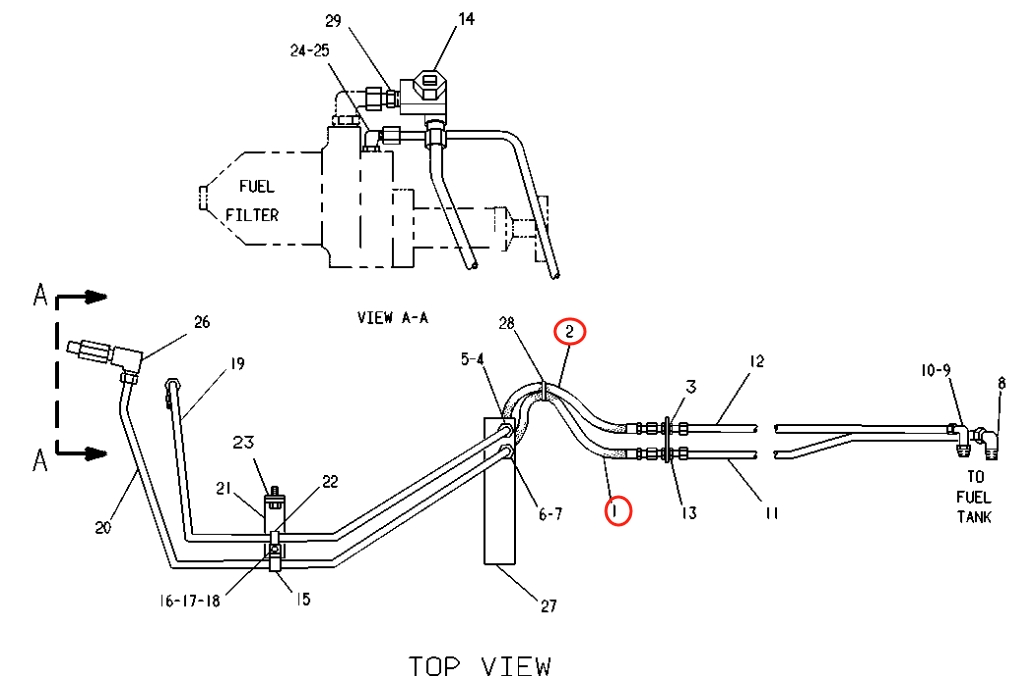

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 2V-5956 before removing the hose.

Caterpillar CAT®219D installation diagram showing hydraulic hose 2V-5956 at Pipe No. 2 — Caterpillar CAT®219DPart 2V-5956 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 2V-5956
Diagram pipe number: 2
Installation route: 燃油箱~燃油过滤器
Hose specification: DN6;1SN-4;19.2Mpa
Finished length: 534 mm
Working pressure: 19.2 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

5C-6136

Installation route: 燃油箱~燃油过滤器

Length: 420 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
