5T-4525 Hose Repair Specifications

Excavator · Caterpillar · CAT®229 · Solenoid Valve

Finished length522 mm

Locate this hose

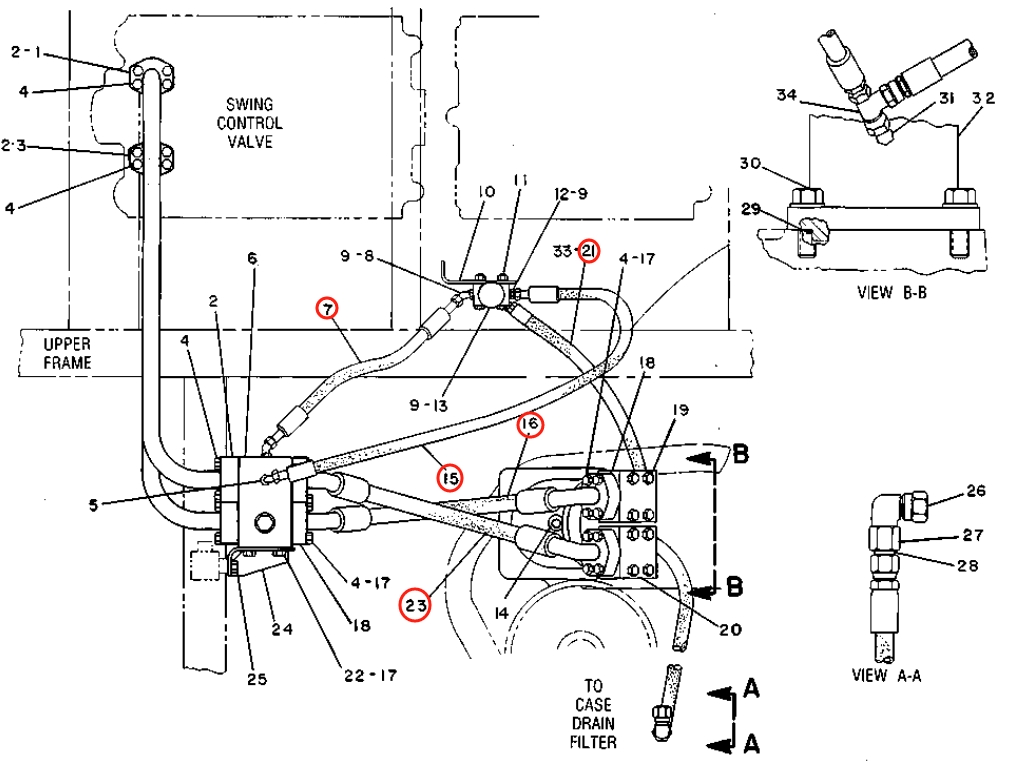

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 5T-4525 before removing the hose.

Caterpillar CAT®229 installation diagram showing hydraulic hose 5T-4525 at Pipe No. 7 — Caterpillar CAT®229Part 5T-4525 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 5T-4525
Diagram pipe number: 7
Installation route: 电磁阀(分配阀右下)~安全阀(回转马达后)
Hose specification: DN10;4SP-6;28Mpa
Finished length: 522 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 41

2V-0156

Installation route: 电磁阀(回转马达左后)~安全阀(分配阀后)

Length: 990 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 16

6C-0066

Installation route: 电磁阀(回转马达左后)~铁管(大臂)

Length: 2,150 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 15

9S-6843

Installation route: 电磁阀(分配阀右下)~安全阀(回转马达后)

Length: 1,025 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 1

8R-0944

Installation route: 电磁阀(液压油箱后)~安全阀(液压油箱后)

Length: 687 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
