Individual hose record
4281530 Hose Repair Specifications
Excavator · Hitachi · EX300LC-3C · Pedal
Finished length1,200 mm
Locate this hose

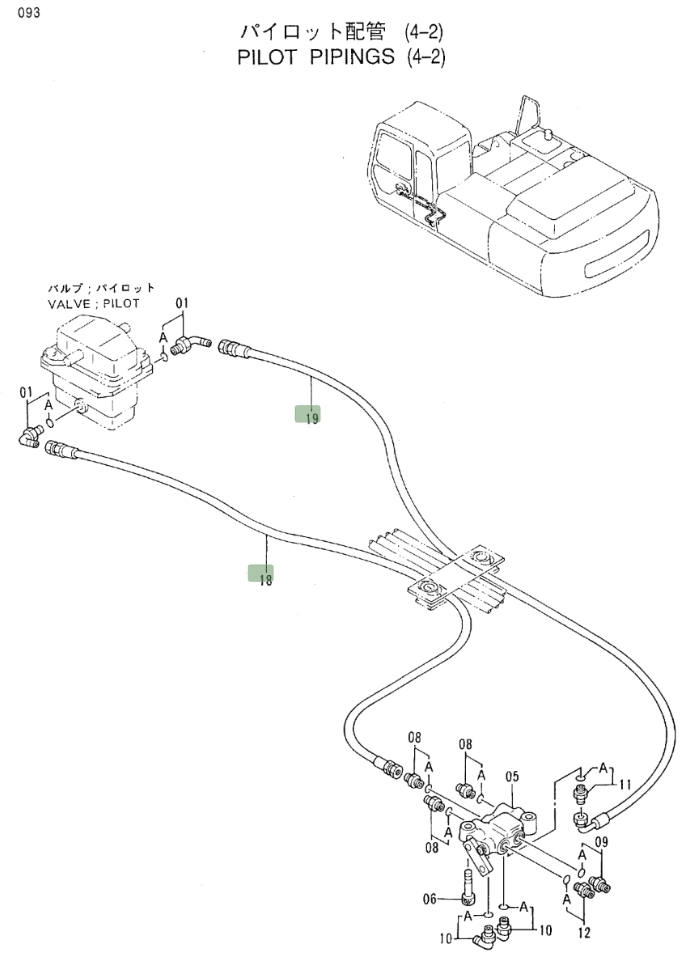

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 4281530 before removing the hose.
Repair specifications
- Part number
- 4281530
- Diagram pipe number
- 19
- Installation route
- 行走踏板~进回油阀
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,200 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
