Individual hose record

4I-6233 Hose Repair Specifications

Excavator · Caterpillar · CAT®317B L · Control Lever

Finished length2,650 mm

Locate this hose

Installation diagram — Pipe No. 24

Locate Pipe No. 24 in the diagram, then confirm part number 4I-6233 before removing the hose.

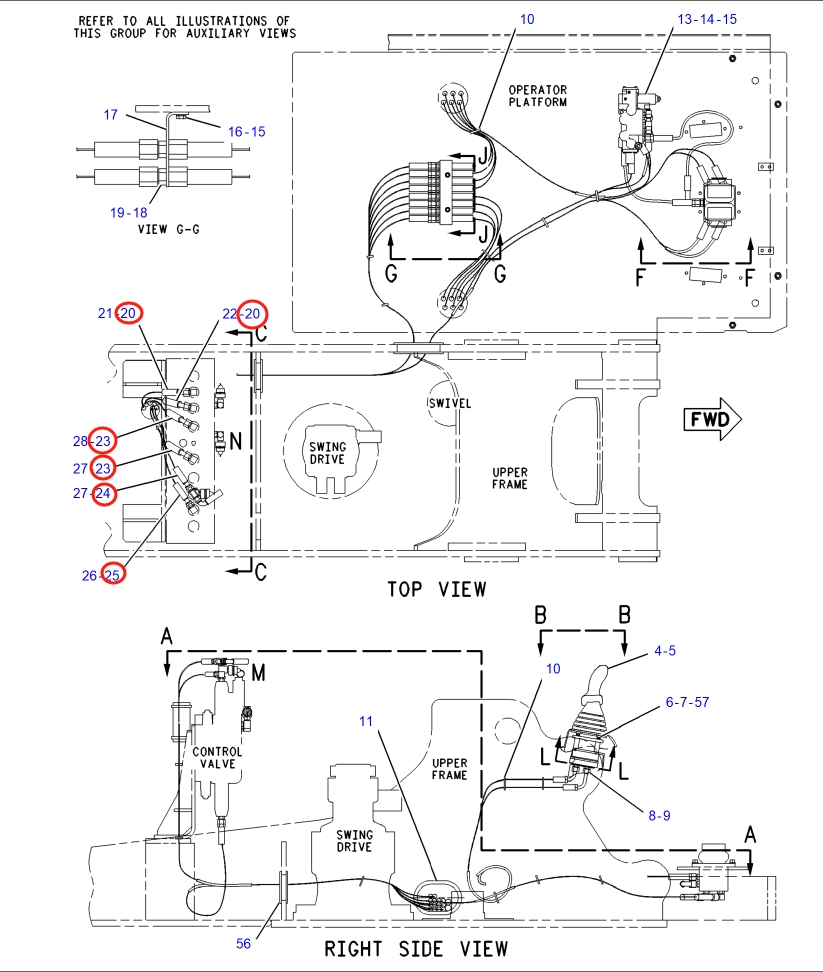

Caterpillar CAT®317B L installation diagram showing hydraulic hose 4I-6233 at Pipe No. 24 — Caterpillar CAT®317B LPart 4I-6233 · Pipe No. 24Open full-size diagram

Repair specifications

Part number: 4I-6233
Diagram pipe number: 24
Installation route: 中转接头~分配阀上
Hose specification: DN10;-6;10.3Mpa
Finished length: 2,650 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 43

4I-6245

Installation route: 中转接头~分配阀下

Length: 2,400 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 42

5I-3127

Installation route: 中转接头~分配阀下

Length: 1,900 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 25

4I-5507

Installation route: 中转接头~分配阀上

Length: 2,480 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 44

4I-7608

Installation route: 中转接头~分配阀下

Length: 2,050 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
