Individual hose record

KHJ2291 Hose Repair Specifications

Excavator · Case · CX75C SR · Hydraulic Pump

Finished length240 mm

Locate this hose

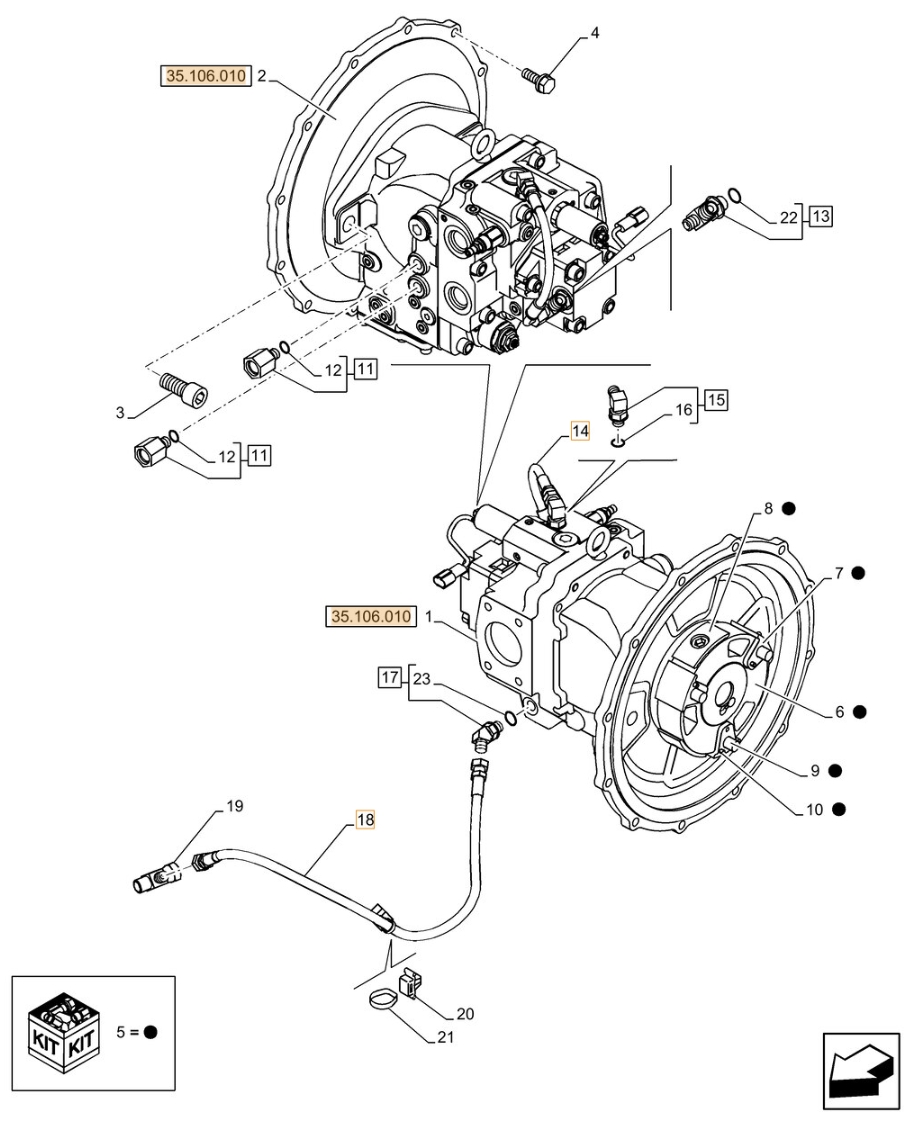

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number KHJ2291 before removing the hose.

Part number: KHJ2291
Diagram pipe number: 14
Installation route: 液压泵~先导泵
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 240 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. B17-E3

Installation route: 液压泵左~先导滤芯

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 18

Installation route: 液压泵右~液压泵前置三通接头

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
