Individual hose record
4659381 Hose Repair Specifications
Excavator · Hitachi · EX110-5 · Supply and Return Valve
Finished length900 mm
Locate this hose

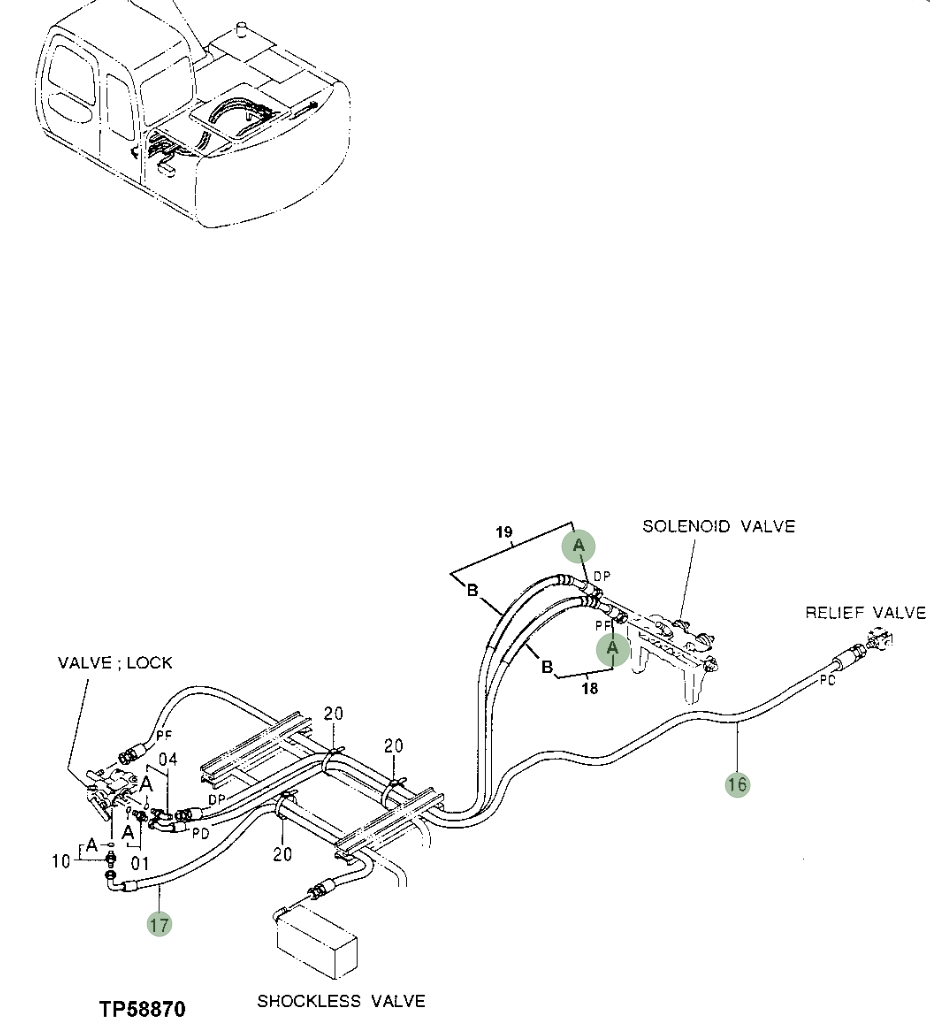

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 4659381 before removing the hose.
Repair specifications
- Part number
- 4659381
- Diagram pipe number
- 17
- Installation route
- 进回油阀~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 900 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
