Individual hose record

4260310 Hose Repair Specifications

Excavator · Hitachi · EX110-5 · Boom Assembly

Finished length700 mm

Locate this hose

Installation diagram — Pipe No. 13

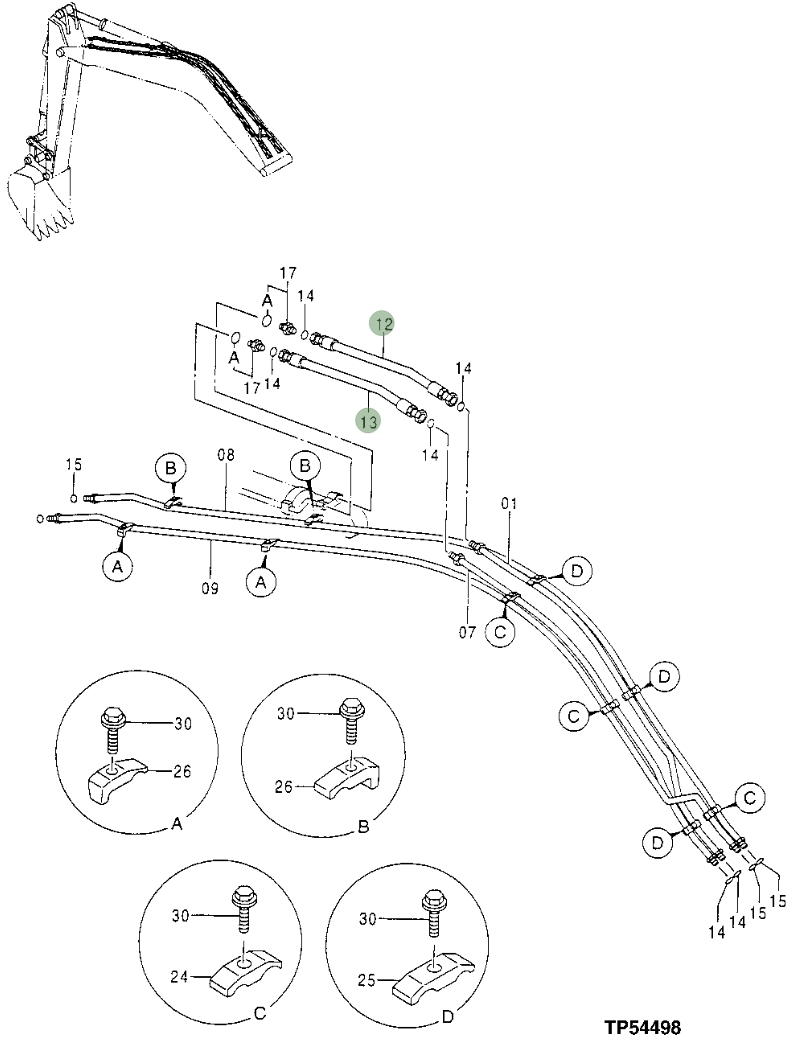

Locate Pipe No. 13 in the diagram, then confirm part number 4260310 before removing the hose.

Hitachi EX110-5 installation diagram showing hydraulic hose 4260310 at Pipe No. 13 — **Hitachi EX110-5**Part 4260310 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 4260310
Diagram pipe number: 13
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN16;4SP-10;38Mpa
Finished length: 700 mm
Working pressure: 38 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
