Individual hose record

KHJ2342 Hose Repair Specifications

Excavator · Case · CX180D LC · Solenoid Valve

Finished length380 mm

Locate this hose

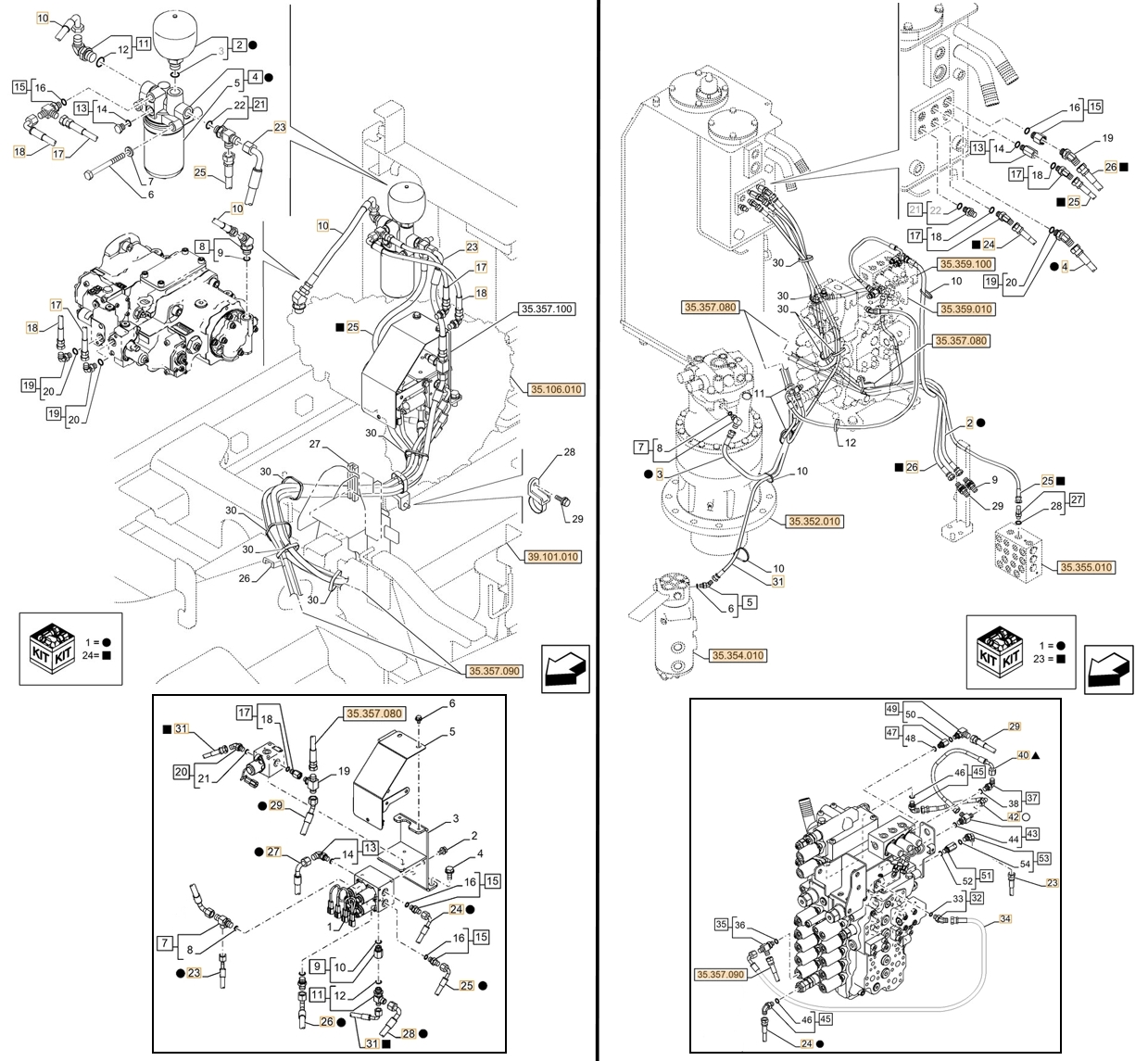

Installation diagram — Pipe No. C31

Locate Pipe No. C31 in the diagram, then confirm part number KHJ2342 before removing the hose.

Part number: KHJ2342
Diagram pipe number: C31
Installation route: 电磁阀~电磁阀(单联)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 380 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. B2-C26

Installation route: 电磁阀~接头(进回油阀)

Length: 2,250 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. A25

Installation route: 电磁阀~蓄能器

Length: 450 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
