Individual hose record

4612607 Hose Repair Specifications

Excavator · Hitachi · ZX180W · Attachments – Lock Valve

Finished length2,750 mm

Locate this hose

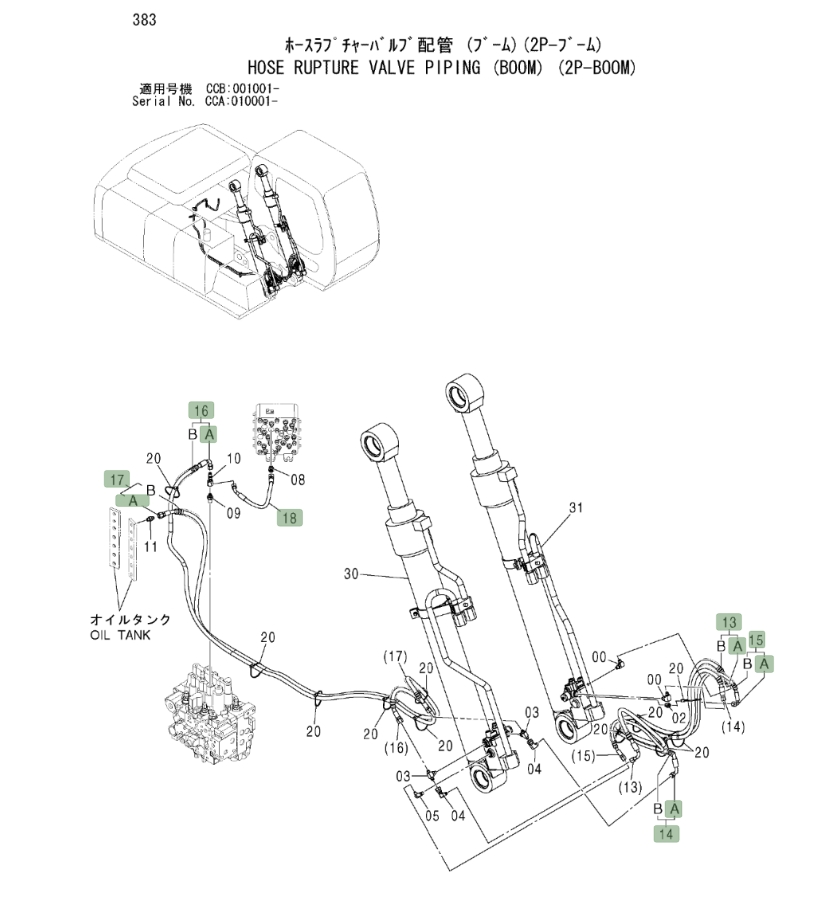

Installation diagram — Pipe No. 17A

Locate Pipe No. 17A in the diagram, then confirm part number 4612607 before removing the hose.

Hitachi ZX180W installation diagram showing hydraulic hose 4612607 at Pipe No. 17A — Hitachi ZX180WPart 4612607 · Pipe No. 17AOpen full-size diagram

Repair specifications

Part number: 4612607
Diagram pipe number: 17A
Installation route: 左大臂油缸锁止阀~液压油箱
Hose specification: DN10;1SN-6;7Mpa
Finished length: 2,750 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 13A

4436267

Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀

Length: 420 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
