Individual hose record

KHJ2826 Hose Repair Specifications

Excavator · Case · CX135SR · Swivel Joint

Finished length780 mm

Locate this hose

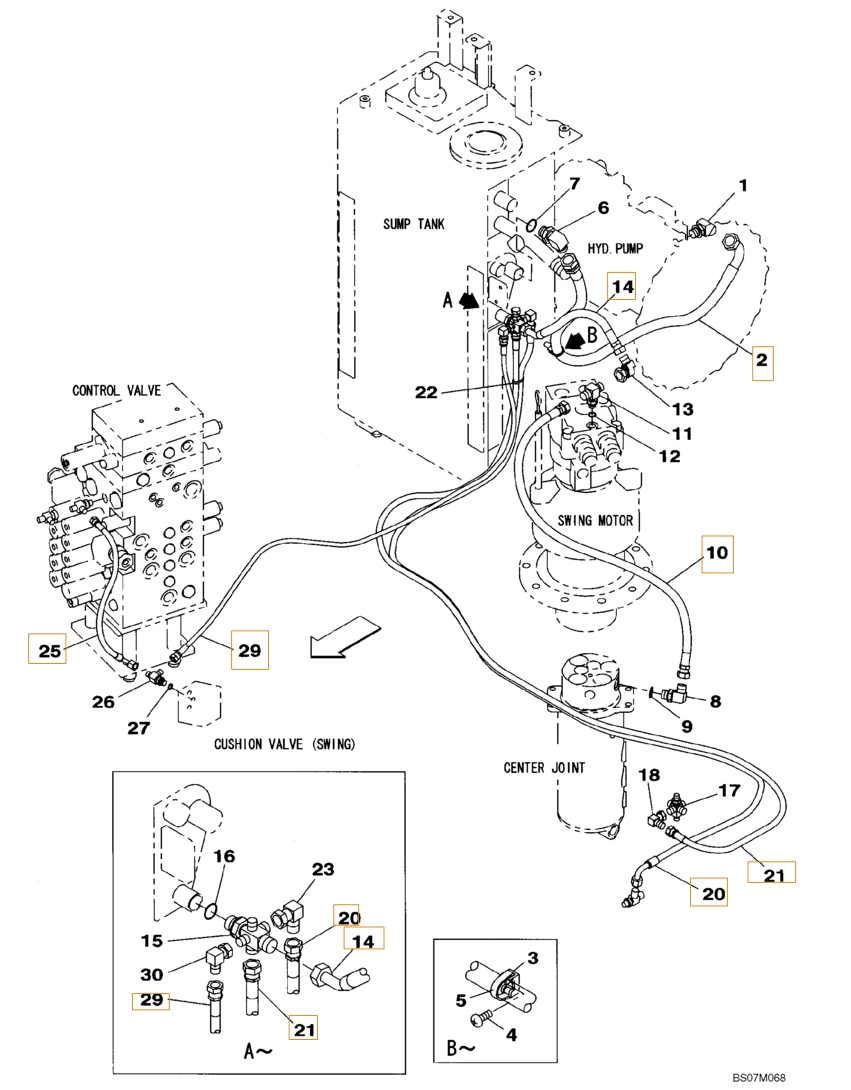

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number KHJ2826 before removing the hose.

Part number: KHJ2826
Diagram pipe number: 10
Installation route: 回转接头~回转马达(回油)
Hose specification: DN13;2SN-08;27.5MPa
Finished length: 780 mm
Working pressure: 27.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 8

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 1,650 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 4

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 1,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 1

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 1,680 mm
Specification: DN19;4SH-12;42.0MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 68

Installation route: 回转接头~电磁阀

Length: 1,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 4

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 3

Installation route: 回转接头~推土铲铁管

Length: 750 mm
Specification: DN13;4SH-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
