FF103252 Hose Repair Specifications

Excavator · Hitachi · ZXS370F-3 · Attachments

Finished length1,080 mm

Locate this hose

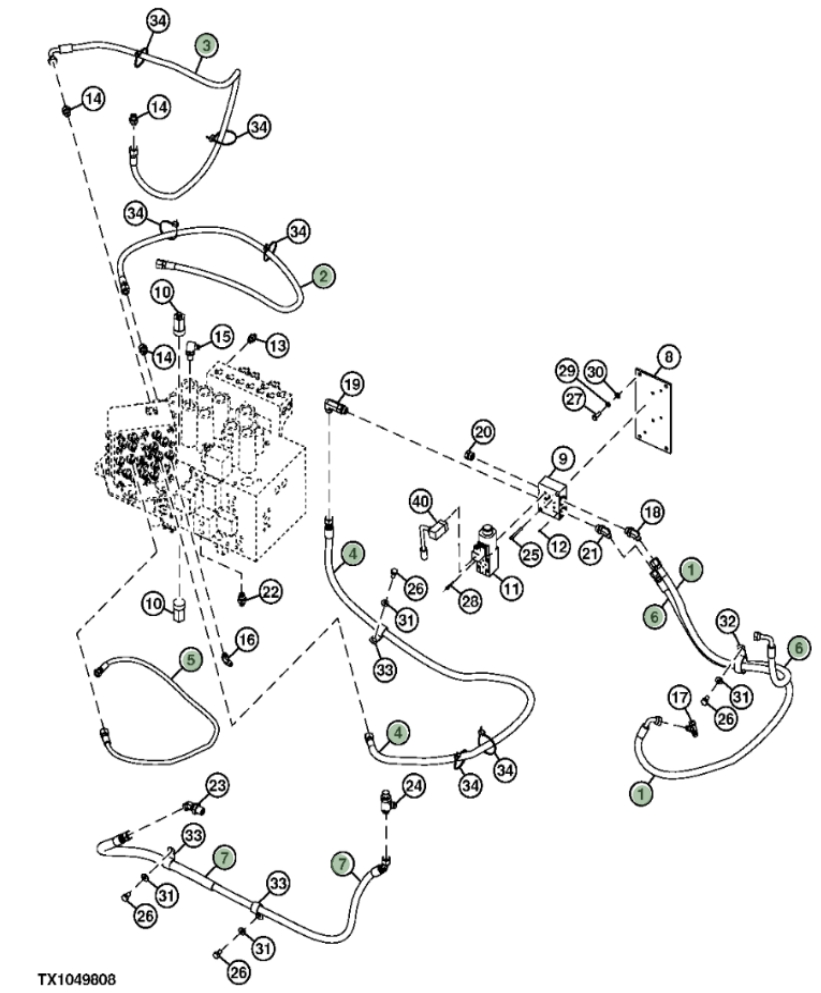

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number FF103252 before removing the hose.

Hitachi ZXS370F-3 installation diagram showing hydraulic hose FF103252 at Pipe No. 1 — Hitachi ZXS370F-3Part FF103252 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: FF103252
Diagram pipe number: 1
Installation route: 过渡阀块(附加装置)~
Hose specification: DN12;1SN-8;7Mpa
Finished length: 1,080 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
