Individual hose record

159019A1 Hose Repair Specifications

Excavator · Case · CX130 · Solenoid Valve

Finished length900 mm

Locate this hose

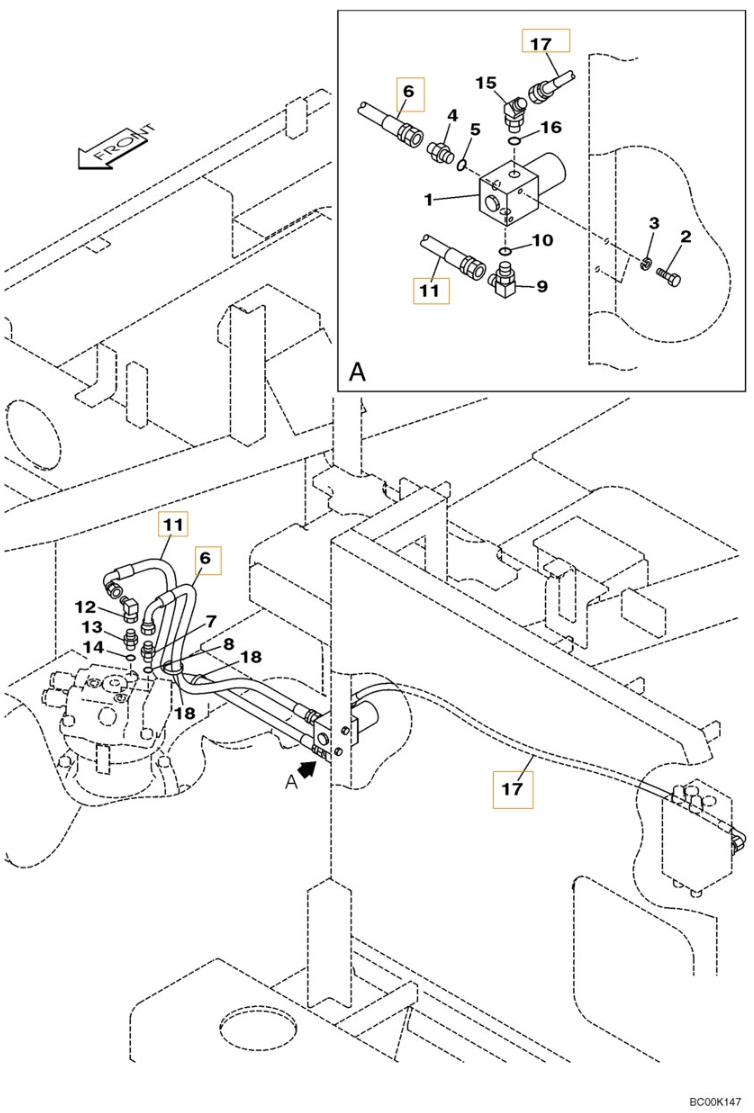

Installation diagram — Pipe No. 17

Locate Pipe No. 17 in the diagram, then confirm part number 159019A1 before removing the hose.

Part number: 159019A1
Diagram pipe number: 17
Installation route: 电磁阀~缓冲阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 900 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 19

Installation route: 电磁阀~缓冲阀

Length: 2,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 86

Installation route: 电磁阀左1~进回油阀

Length: 1,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 23

Installation route: 电磁阀~接头(进回油阀)

Length: 1,850 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
