Individual hose record

4286265 Hose Repair Specifications

Excavator · Hitachi · ZX180W · Boom Assembly

Finished length600 mm

Locate this hose

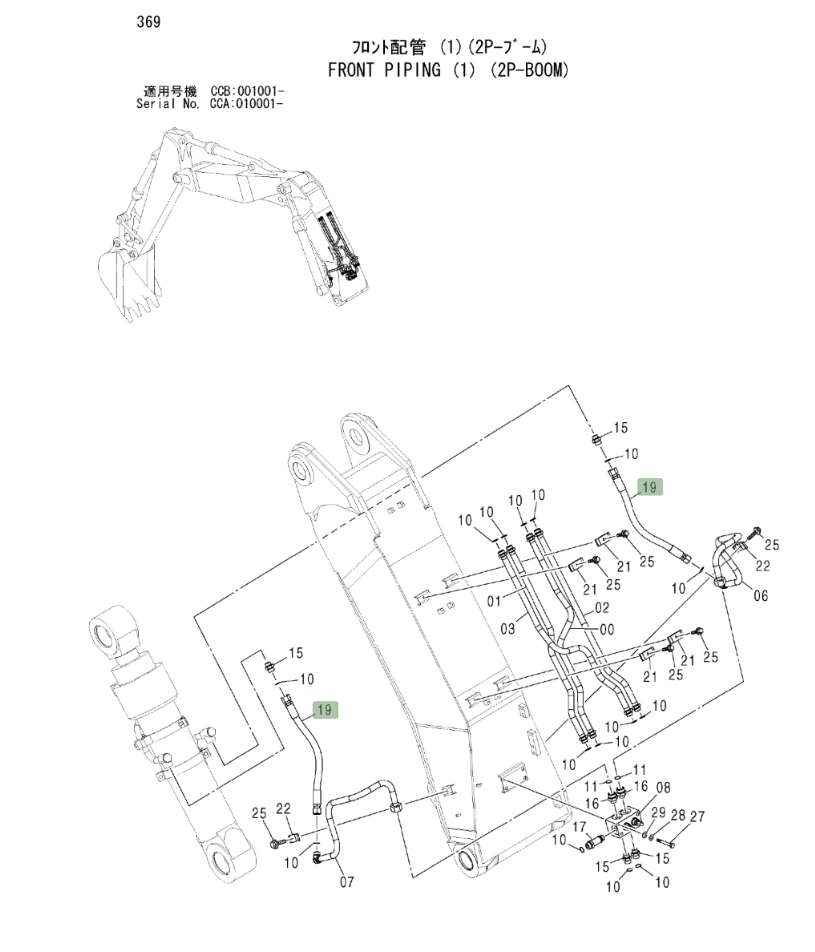

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number 4286265 before removing the hose.

Part number: 4286265
Diagram pipe number: 19
Installation route: 分节油缸
Hose specification: DN19;4SP-12;34.5MPa
Finished length: 600 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 13

Installation route: 小臂油缸

Length: 850 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 12

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 2,450 mm
Specification: DN19;4SP-12;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 31

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 2,450 mm
Specification: DN19;4SP-12;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
