Individual hose record
4701770 Hose Repair Specifications
Excavator · Hitachi · EX1200-7 · Swivel Joint
Finished length2,400 mm
Locate this hose

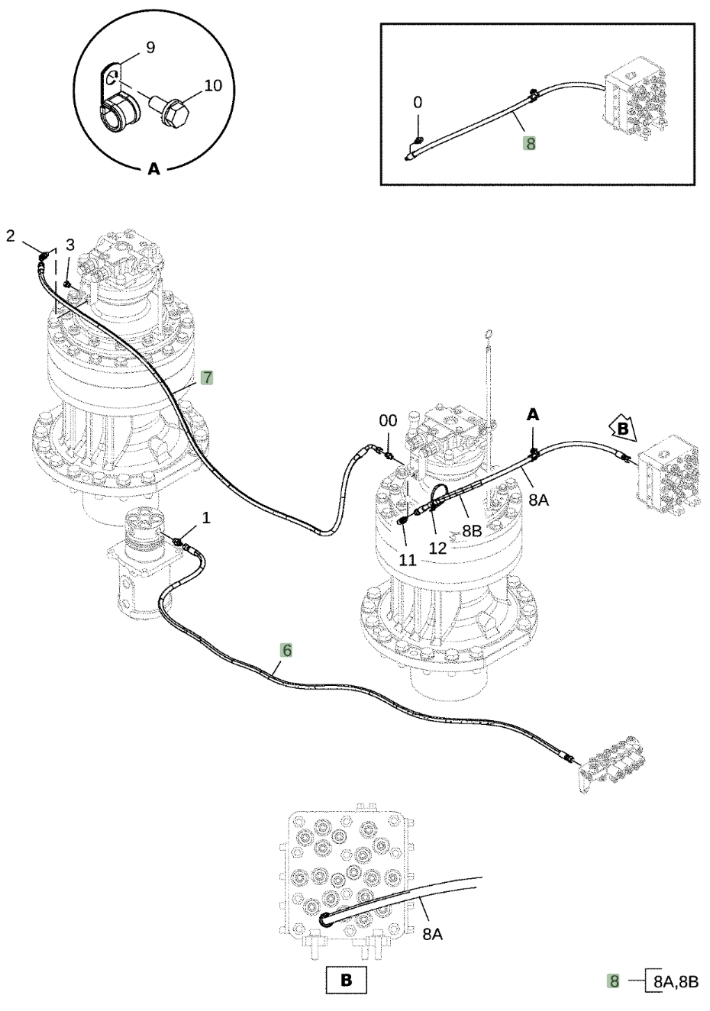

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4701770 before removing the hose.
Repair specifications
- Part number
- 4701770
- Diagram pipe number
- 6
- Installation route
- 回转接头~电磁阀(分配阀旁)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,400 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
