Individual hose record

FF531999 Hose Repair Specifications

Excavator · Hitachi · ZX245USLC-5N · Attachments – Breaker

Finished length2,670 mm

Locate this hose

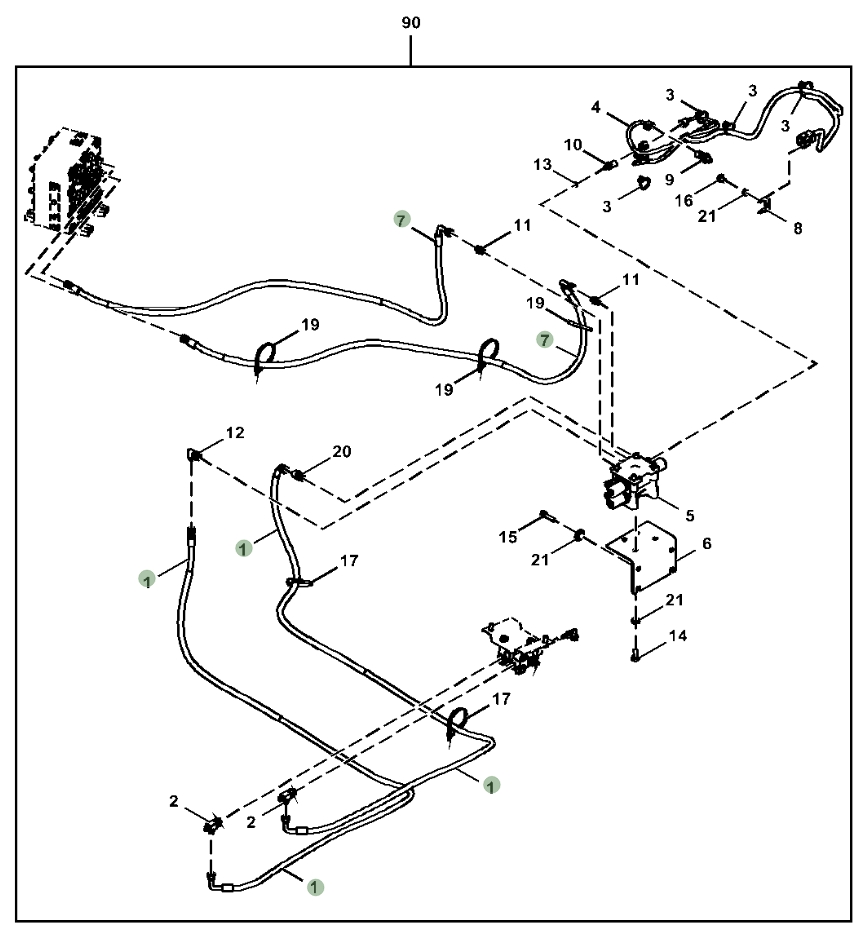

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number FF531999 before removing the hose.

Hitachi ZX245USLC-5N installation diagram showing hydraulic hose FF531999 at Pipe No. 1 — Hitachi ZX245USLC-5NPart FF531999 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: FF531999
Diagram pipe number: 1
Installation route: 控制阀(破碎器)~过渡阀块(破碎器)
Hose specification: DN10;1SN-6;7Mpa
Finished length: 2,670 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 10

4269834

Installation route: 中转接头~分配阀下

Length: 500 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 10

4678895

Installation route: 中转接头~分配阀下

Length: 510 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 美制内螺纹74°内锥双六角

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
