Individual hose record

168-9331 Hose Repair Specifications

Excavator · Caterpillar · CAT®312D L · Solenoid Valve

Finished length1,100 mm

Locate this hose

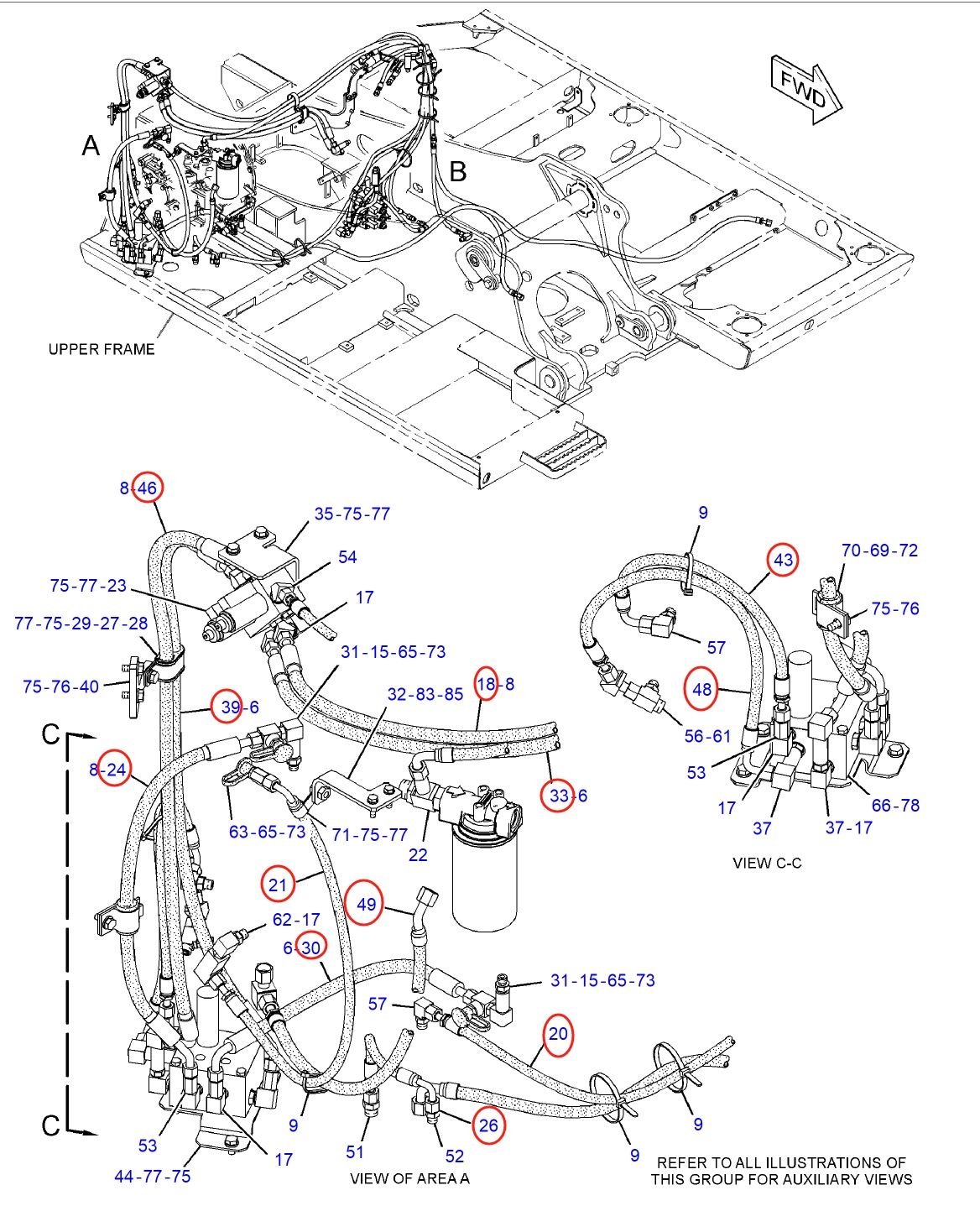

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 168-9331 before removing the hose.

Part number: 168-9331
Diagram pipe number: 18
Installation route: 电磁阀(液压油箱后上)~
Hose specification: DN10;6SH-6;42Mpa
Finished length: 1,100 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 19

Installation route: 电磁阀(液压油箱后上)~液压油箱

Length: 1,100 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 9

Installation route: 电磁阀(分配阀下)~过渡阀块(液压泵下)

Length: 980 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 9

Installation route: 电磁阀(分配阀右)~电磁阀(液压泵右)

Length: 980 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 电磁阀(分配阀右前)~电磁阀(分配阀前下)

Length: 900 mm
Specification: DN10;-6;10.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
