Individual hose record

7V-0917 Hose Repair Specifications

Excavator · Caterpillar · CAT®235D · Fuel Lines

Finished length794 mm

Locate this hose

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 7V-0917 before removing the hose.

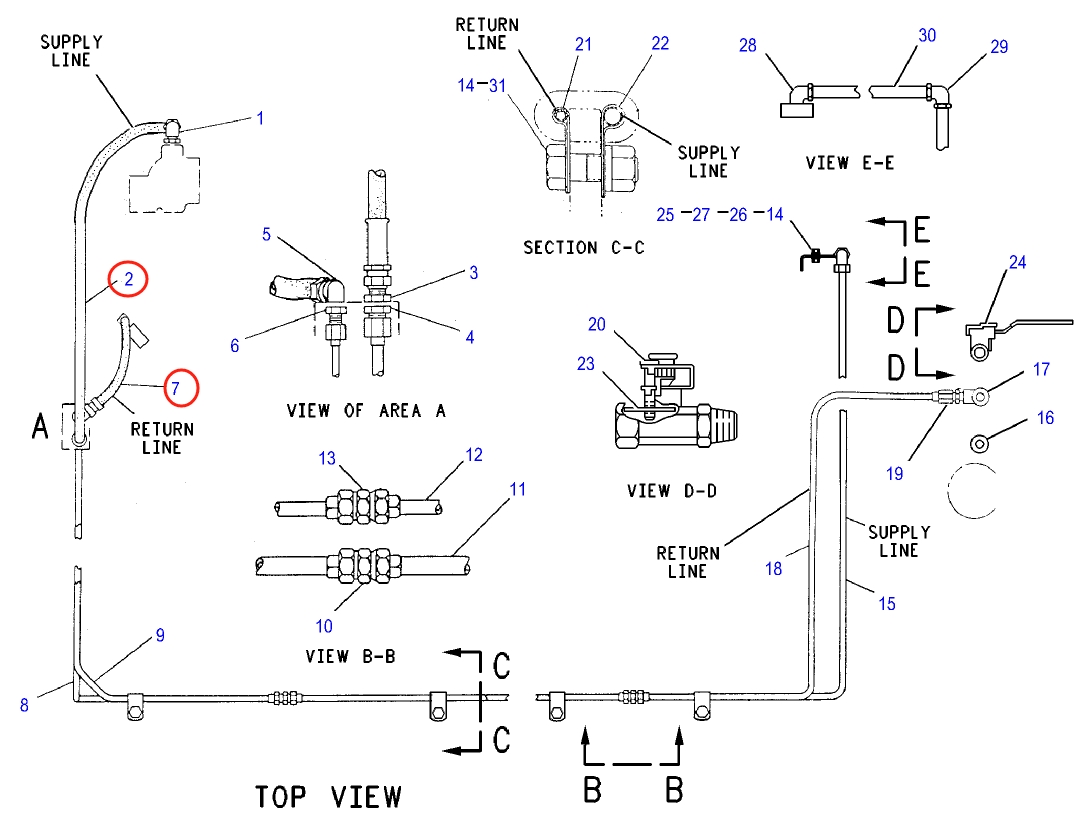

Caterpillar CAT®235D installation diagram showing hydraulic hose 7V-0917 at Pipe No. 2 — Caterpillar CAT®235DPart 7V-0917 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 7V-0917
Diagram pipe number: 2
Installation route: 燃油箱~油水分离器
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 794 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 7

7V-0916

Installation route: 燃油喷油泵~燃油箱

Length: 400 mm
Specification: DN6;1SN-4;19.2Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
