Individual hose record

DS2093056 Hose Preview

Excavator · Doosan · DX140LCR · Attachments – Quick Coupler

Finished length1,300 mm

Repair specifications

Part number
DS2093056
Diagram pipe number
7
Installation route
Quick-coupler valve port T → return steel line (control valve)Original Chinese: 快速联轴阀T口~回油铁管(分配阀)
Hose specification
DN6;1SN-04;22.5MPa
Finished length
1,300 mm
Working pressure
22.5 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity
1

Manual diagrams

Installation and Exploded Views

A red marker identifies a reviewed hose location.

Installation diagram

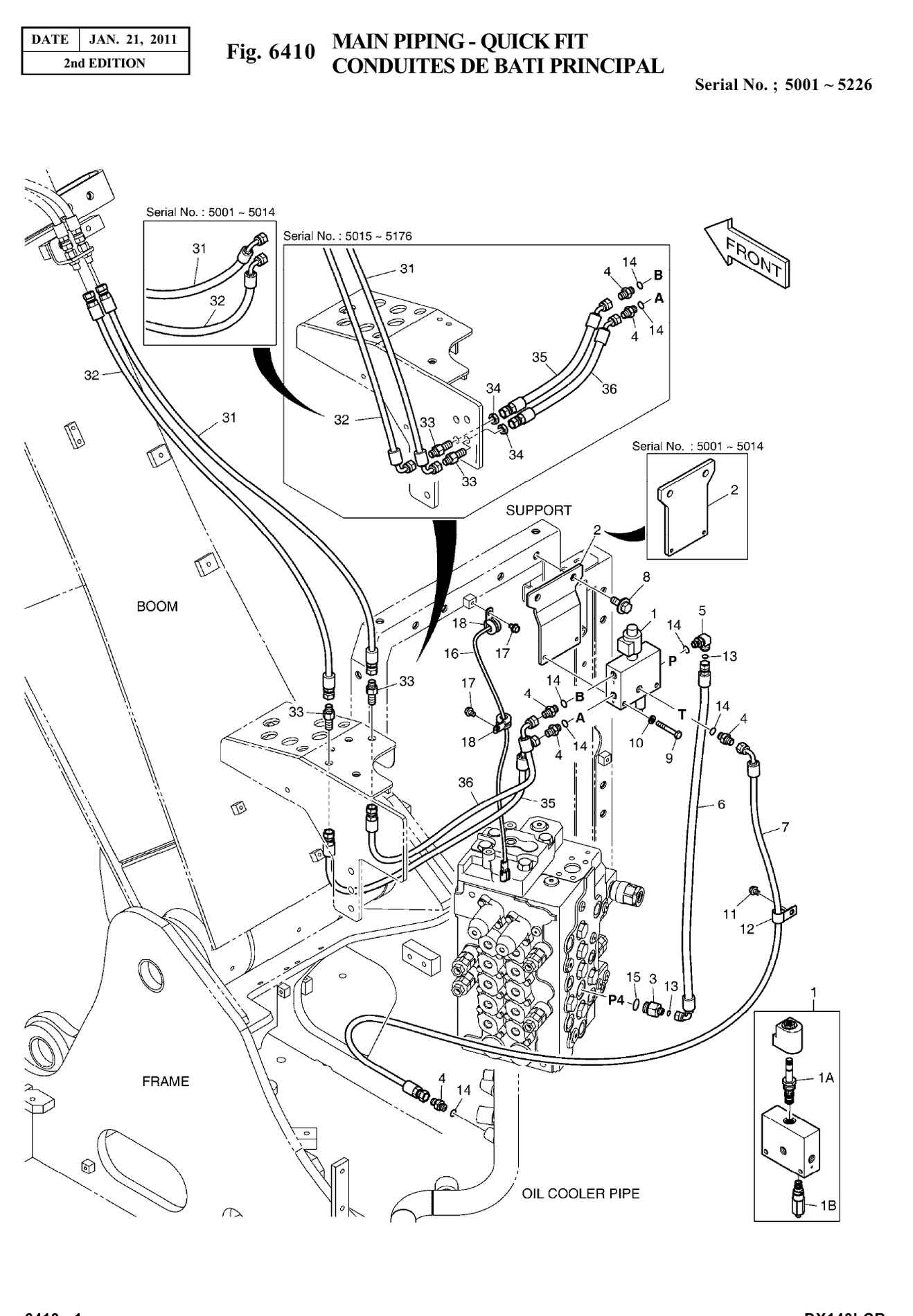

Installation diagramUse this diagram to help identify the hose. Confirm the exact position and pipe number on the machine.Doosan DX140LCR Excavator Parts ManualManual page 592 · Printed page 6410-1 · Fig. 6410View full-size

For reference only. Confirm the actual hose before fabrication.
